Vitus Nucleus VR 2018

MTB Trail
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,9 kg
Front travel
120mm

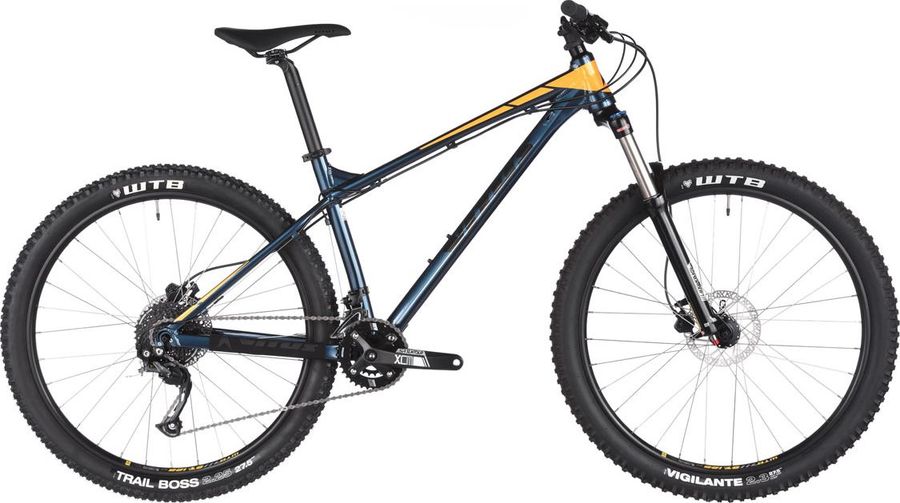

Vitus Nucleus VR 2018

About the Vitus Nucleus VR 2018

The Vitus Nucleus VR 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 18 gears (2x9). Its features include hydraulic disc brakes. The bike weighs approximately 13,9 kg.

Features

The Vitus Nucleus VR 2018 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Vitus alloy, 50mm
Saddle
Vitus
Headset
FSA, 1 1/8
Seatpost
Vitus alloy, 31.6mm, 400mm
Handlebar
Vitus alloy, 740mm
Brakes
Tektro HD-M291
Drivetrain
Crankset
Suntour, 36x22t, 175mm
Shifter
Shimano Altus, 2x9
Bottom bracket
Suntour, Square taper 118mm
Front derailleur
Shimano M462B, 2x Band on
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Chain
KMC Z99
Rear derailleur
Shimano Altus RD-M2000 SGS 9s
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M2000
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
6061-T6 Alloy, Mechanicaly formed 6061-T6 Alloy, 135mm QR
Front suspension
SR Suntour XCR
Wheels
Rims
WTB, TCS, 27.5
Tires
WTB Vigilante 2.3 (FR) WTB Trail Boss 2.25 (RR), 27.5"
Spokes
Double butted
Rear hub
KT, 135mm QR, 32h
Front hub
KT, 100mm QR, 32h

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
432,0
483,0
520,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
597,0
617,0
637,0
662,0
d
Head tube length
105,0
110,0
120,0
130,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
107,0
109,0
109,0
106,0
h
Wheelbase
1125,0
1143,0
1164,0
1193,0
i
Chainstay length
422,0
422,0
422,0
422,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
589,0
594,0
603,0
612,0
l
Reach
417,0
435,0
452,0
474,0
m
Standover height
-
-
-
-
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
707,0
725,0
746,0
775,0
