Vitus Rapide 2020

MTB Cross Country
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
12,9 kg
Front travel
100mm

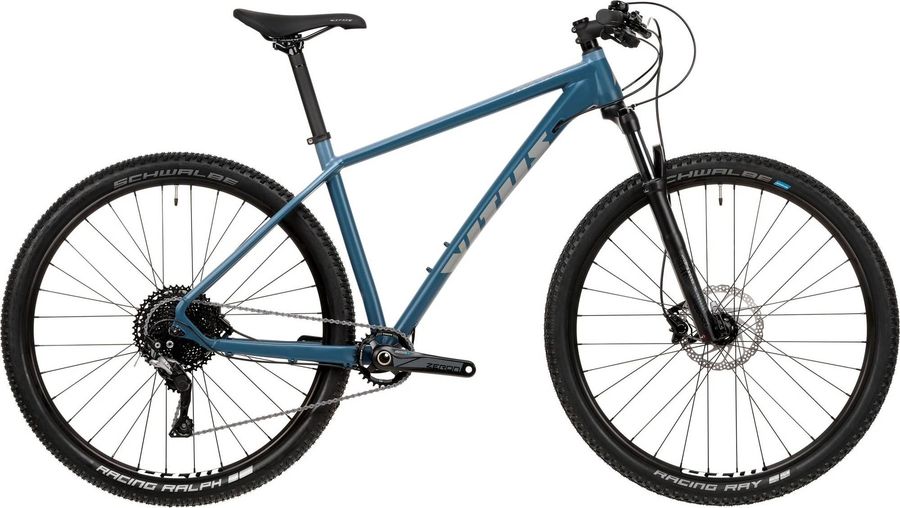

Vitus Rapide 2020

About the Vitus Rapide 2020

The Vitus Rapide 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 12,9 kg.

Features

The Vitus Rapide 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
VITUS Tapered, single alloy clamp, sticky rubber
Components
Steam
Vitus 3D FORGED 31.8MM -7DEG S:70MM / M:80MM / L:90MM / XL:100MM
Saddle
VITUS N/A
Headset
ACROS Zero Stack 44/28 - 56/40
Seatpost
VITUS 31.6x400m/m ALLOY 6061
Handlebar
Vitus 5mm RISE, 9 DEGREE BACK SWEEP, 31.8mm diameter S720mm / M740mm / L740mm / XL740mm)
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SR SUNTOUR ZERON, 30T, GXP 73mm, 53mm BOOST chainline S:170mm / M,L,XL:175mm
Shifter
SHIMANO SLX SL-M7000-R, 11-SPEED
Bottom bracket
SUNTOUR, Theaded 73mm BSA
Rear derailleur
Shimano SLX RD-M7000-11-SGS
Cassette
Sunrace 11-speed
Chain
KMC Z9
Frameset
Frame
Rapide 29" alloy XC hardtail, Boost, AL6061
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i25 TCS 2.0, 29", 25mm inner diameter, 32 hole, Pinned Joint
Tires
SCHWALBE RACING RAY Evo,, 29" x 2,25", SnakeSkin, TLE, ADDIX SpeedGrip
Spokes
14G STAINLESS DB BLACK BLACK BRASS NIPPLES
Rear hub
VITUS M5ER, Boost 12x148mm, DOUBLE SEALED BEARINGS, 32H, Shimano 11spd Driver Body, 6 BOLT
Front hub
VITUS DHF112 Boost 15x110mm, DOUBLE SEALED BEARINGS, 32H, 6 BOLT

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
440,0
480,0
530,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
597,0
617,0
637,0
657,0
d
Head tube length
95,0
100,0
115,0
125,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
51,0
51,0
47,0
51,0
g
Trail
104,0
104,0
108,0
104,0
h
Wheelbase
1128,7
1151,5
1168,1
1194,2
i
Chainstay length
442,0
442,0
442,0
442,0
j
Bottom bracket drop
65,0
60,0
60,0
60,0
k
Stack height
628,0
628,0
642,0
651,0
l
Reach
407,0
427,0
442,0
460,0
m
Standover height
-
-
-
-
x
Bottom bracket height
309,0
314,0
314,0
314,0
y
Front center
695,0
716,0
733,0
759,0
