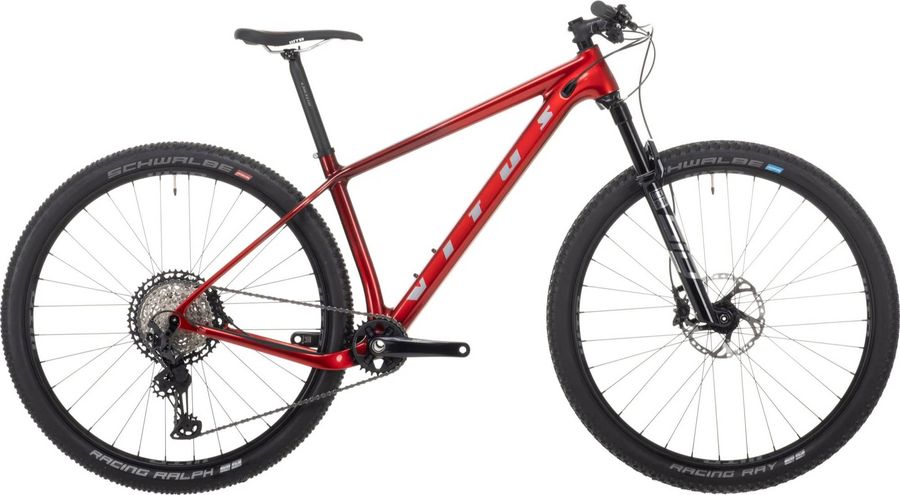

Vitus Rapide 29 CRX Mountain 2021

MTB Cross Country

Groupset

Shimano XT

Frame material

Carbon

Wheel size

29"

Suspension type

Hardtail

Front travel

100mm

About the Vitus Rapide 29 CRX Mountain 2021

The Vitus Rapide 29 CRX Mountain 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148.

Features

The Vitus Rapide 29 CRX Mountain 2021 has 5 features listed below.

Internal routing More info

Boost 110 More info

Boost 148 More info

E-THRU AXLE More info

Tapered head tube More info

Specifications

Acessories
Grip	Vitus lock on N/A

Components
Steam	Ritchey WCS C220 84D Forged 2014 alloy, +/- 6° rise, reach – S -70mm/M-80mm/L -90mm/XL-100mm
Saddle	WTB SL8 Comp 142mm wide
Headset	Acros AZX-212-CO R5 Zero stack, sealed bearings, 1 1/8” – 1 ½”, ZS44/28.6 – 56/40
Seatpost	Ritchey WCS Zero 3D forged 7050 alloy, zero offset, 31.6mm x 400mm
Handlebar	Ritchey WCS flat bar 6061 alloy, 5mm rise, 9° back sweep, 720mm wide S/M, 740mm wide L/XL
Discs	Shimano RT76, 6 bolt, 180mm front / 160mm rear
Brakes	Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g) 392 (BL-M8100) Brake hose color kit Black Brake hose kit SM-BH90-SBM Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Series color Hose joint Banjo ICE TECHNOLOGIES pad compatible caliper J-Kit spec for OEM Model BR-M8100 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad option J03A Resin (w/ fin) Pad option J04C Metal (w/ fin) Pad standard G03A Resin (w/o fin) Pad standard G04S Metal (w/o fin) Pad mount Pad axle Piston 2 Piston material Ceramic Recommended brake lever BL-M8100 BL-T8100

Drivetrain
Crankset	Shimano XT M8100, 30t, S 170mm/M,L,XL 175mm
Shifter	Shimano XT M8100 Rapidfire plus, 12 speed
Bottom bracket	Prestine PF, N/A
Rear derailleur	Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g) 284 B axle hollow B axle material Stainless steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG 12-speed Lower pulley max 51T Lower pulley min 51T Model RD-M8100-SGS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 13T pulley.tension_pulley_bearing Sealed bearing Pulley cage SGS Speeds 12 Upper pulley max 10T Upper pulley min 10T Total capacity 41T
Chain	Shimano CN-M8100 252 g
Average weight (g) 252 Chromizing treatment roller link pin Model CN-M8100 Pin link plate Gray Roller link plate Chromizing Type HG 12-speed
Cassette	Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish Anodized Aluminum gear pieces 2 Aluminum spider arm finish Painted Aluminum spider arm pieces 1 Combination names 10-45T 10-51T Compatible chain HG 12-speed Lock ring finish Anodized Lock ring material Aluminum Model CS-M8100-12 Steel gear finish Plated Steel gear pieces 10 Type HYPERGLIDE+ Weights 10-45T: 461g 10-51T: 470g

Frameset
Frame	Rapide Superlight carbon, internal cable routing, PF30 BB shell, Boost hub spacing – 148mm x 12mm thru axle
Front suspension	RockShox SID SL Ultimate DebonAir 1326 g
Color Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Gloss Blue Damper type Charger Race Day fork offset 44mm (29") Max tire width (mm) 60 Maximum rotor size 200mm Minimum rotor size 160mm Model FS-SIDS-ULT-C1 Name SID SL Ultimate Spring DebonAir Travel (mm) 100mm Upper tube type 32mm straight wall aluminum Weight based on 100mm travel W/Maxle Stealth Weight 1326 Wheel size 29"

Wheels
Rims	WTB KOM Light i25 TCS 2.0, 29” 32h tubeless tape fitted
Tires	Schwalbe Racing Ray EVO, snakeskin, TLE, Addix speedgrip, 29” x 2.25”
Spokes	WTB N/A
Rear hub	WTB ProTerra, EZO stainless radial bearings, ultra-quick 3.7 degree engagement, 32h, 6 bolt, Boost 148mm x 12mm thru axle
Front hub	WTB ProTerra EZO stainless radial bearings, 32h, 6 bolt, Boost 110mm x 15mm thru axle
