Vitus Rapide 29 VR Mountain 2021

MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

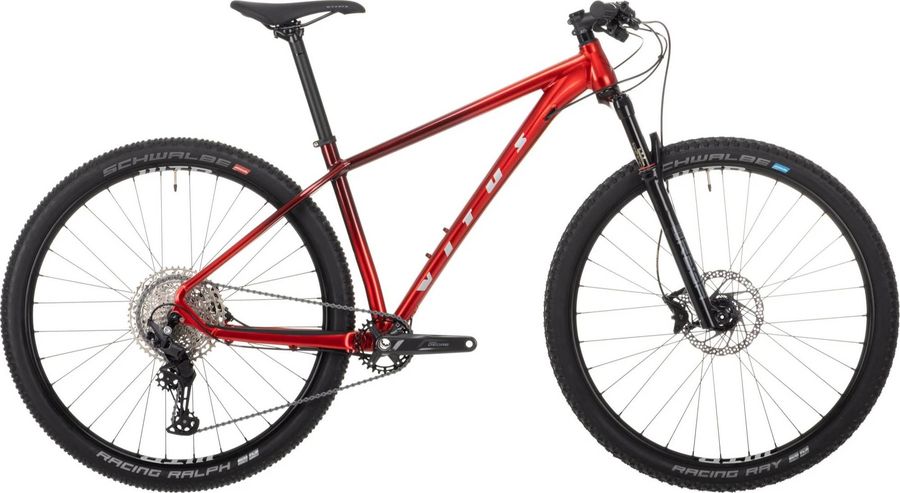

Vitus Rapide 29 VR Mountain 2021

About the Vitus Rapide 29 VR Mountain 2021

The Vitus Rapide 29 VR Mountain 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include internal routing, boost 110 , and boost 148.

Features

The Vitus Rapide 29 VR Mountain 2021 has 5 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Vitus lock on N/A
Components
Steam
Vitus alloy 6061 3D forged, - 7° rise, reach – S -70mm/M-80mm/L -90mm/XL-100mm
Saddle
Vitus N/A
Headset
Acros AiX-322 R3 Sealed bearings, OD46 41.8/28.6 – 52/40
Seatpost
Vitus 6061 alloy 31.6mm x 400mm, 0mm offset
Handlebar
Vitus 6061 alloy 5mm rise, 9° back sweep, 720mm wide S, 740mm wide M/ L/XL
Discs
Shimano RT56, 6 bolt, 180mm front / 160mm rear
Brakes
Shimano Deore BR-M6100 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad standard
G03S Resin
Pad standard
J03A Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
Shimano MT510, 30t, S 170mm/M,L,XL 175mm
Shifter
Shimano Deore M5100 Rapidfire plus, 11 speed
Bottom bracket
Shimano BSA, N/A
Rear derailleur
Shimano Deore RD-M5100-SGS SGS 11s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X11 11-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M5100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
40T
Cassette
Shimano Deore CS-M5100-11 HG
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
11-42T
11-51T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M5100-11
Steel gear finish
Plated
Steel gear pieces
11
Type
HG
Chain
KMC X11
Frameset
Frame
Rapide Alloy 6061-T6, Post mount disc brake mounts, internal cable routing, BSA threaded BB, Boost hub spacing – 148mm x 12mm thru axle
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
WTB ST i25 TCS 2.0, 29” 32h tubeless tape fitted
Tires
Schwalbe Racing Ray EVO, snakeskin, TLE, Addix speedgrip, 29” x 2.25”
Spokes
Vitus N/A
Rear hub
Vitus KT- H5ER-SH, 32h, 6 bolt, Boost 148mm x 12mm thru axle
Front hub
Vitus KT-DHF112 32h, 6 bolt, Boost 110mm x 15mm thru axle

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
440,0
480,0
530,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
597,0
617,0
637,0
657,0
d
Head tube length
95,0
100,0
115,0
125,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
51,0
51,0
47,0
51,0
g
Trail
104,0
104,0
108,0
104,0
h
Wheelbase
1128,7
1151,5
1168,1
1194,2
i
Chainstay length
442,0
442,0
442,0
442,0
j
Bottom bracket drop
65,0
60,0
60,0
60,0
k
Stack height
628,0
628,0
642,0
651,0
l
Reach
407,0
427,0
442,0
460,0
m
Standover height
-
-
-
-
x
Bottom bracket height
309,0
314,0
314,0
314,0
y
Front center
695,0
716,0
733,0
759,0
