BikeWise

Vitus Rapide CR 2019

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

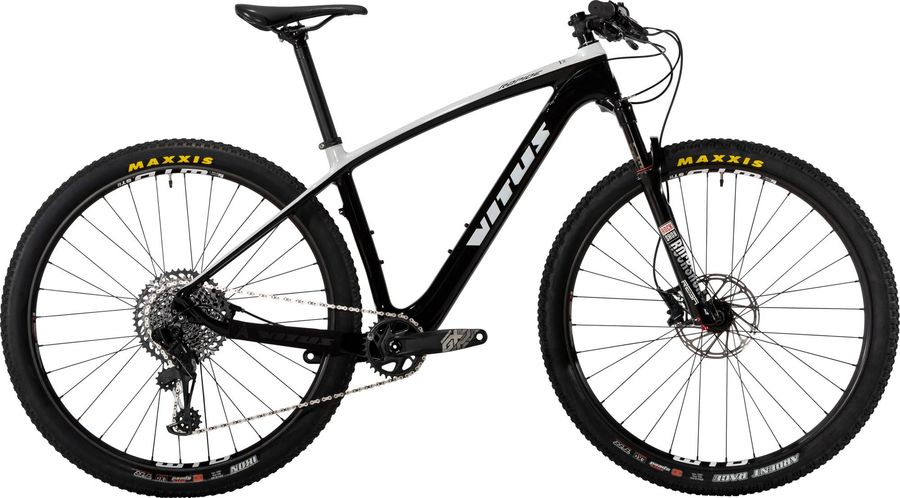

Vitus Rapide CR 2019

About the Vitus Rapide CR 2019

The Vitus Rapide CR 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e remote lockout.

Features

The Vitus Rapide CR 2019 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
Vitus Alloy, S:70MM M:80MM L:90MM XL:100MM
Saddle
Nukeproof Neutron
Headset
FSA
Seatpost
Vitus, 31.6mm
Handlebar
Vitus Alloy, 720mm 5mm rise 31.8mm
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
SRAM GX Eagle, Dub 175mm, 32T
Shifter
SRAM GX Eagle, 1 x 12
Bottom bracket
SRAM, Dub
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Race Ready Carbon Frameset
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
WTB ST Light i25, 29 inch
Tires
Maxxis Ardent Race (F) Maxxis Ikon (R), 3C, 29x2.2”, 3C/EXO/TR/ MaxxSpeed (F) 3C, 29x2.2”, 3C/EXO/TR/ MaxxSpeed (R)
Rear hub
Novatec D462SB, SL-S5S-S11 142x12mm
Front hub
Novatec D791SB 32H, 100x15mm

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
445,0
483,0
533,0
b
Seat tube angle
72,5º
72,5º
72,5º
72,5º
c
Top tube length
585,0
595,0
615,0
635,0
d
Head tube length
105,0
115,0
125,0
135,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
102,0
103,0
103,0
105,0
h
Wheelbase
1090,0
1,1e3
1121,0
1141,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
612,0
622,0
631,0
640,5
l
Reach
390,0
397,0
414,0
431,5
m
Standover height
-
-
-
-
x
Bottom bracket height
314,0
314,0
314,0
314,0
y
Front center
662,0
672,0
693,0
713,0
