Vitus Rapide CRX 2020

MTB Cross Country

Groupset

SRAM X01 Eagle

Frame material

Carbon

Wheel size

29"

Suspension type

Hardtail

Weight

9,96 kg

Front travel

100mm

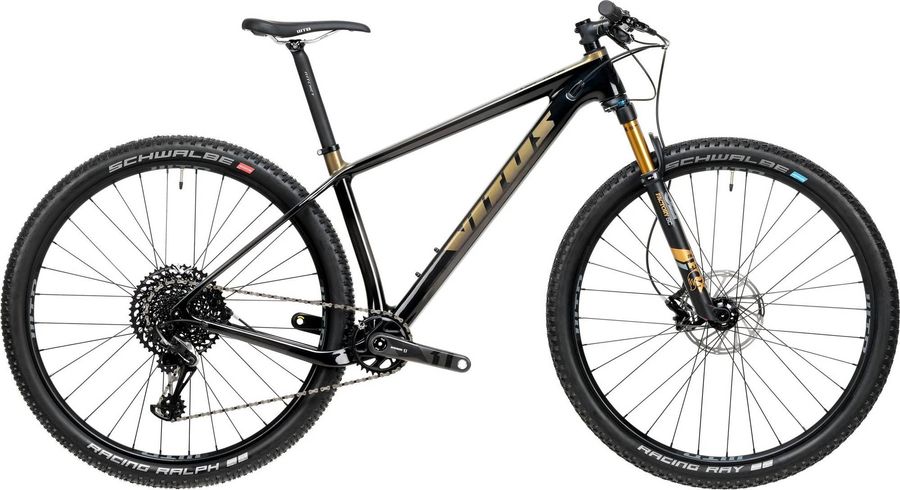

About the Vitus Rapide CRX 2020

The Vitus Rapide CRX 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 9,96 kg.

Features

The Vitus Rapide CRX 2020 has 4 features listed below.

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Remote lockout More info

Specifications

Acessories
Grip	VITUS Tapered, single alloy clamp, sticky rubber

Components
Steam	RITCHEY WCS C220 84D +/-6DEG, Ø31.8mm °, S=70 / M= 80 / L = 90 / XL = 100mm
Saddle	WTB SL8 142 RACE N/A
Headset	ACROS Zero Stack 44/28 - 56/40
Seatpost	VITUS 31.6x400m/m ALLOY 6061
Handlebar	RITCHEY WCS FLAT 5mm RISE, 9 DEGREE BACK SWEEP, 31.8mm diameter S720mm / M740mm / L740mm / XL740mm)
Brakes	SRAM Level TL Hydraulic 370 g
Application MTB Blade material Aluminum - Forged Bracket disk brake Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Diffusion Black Anodized, Gloss Black Model DB-LVL-TL-A1 Name Level TL Orientation Front, Rear Pad type disc Steel-backed metal sintered, Steel-backed organic Weight based on Direct Mount, 800mm hose, 160mm CL Rotor (TARGET) Weight 370

Drivetrain
Crankset	SRAM X1 CARBON, B148, DUB, 175mm, 32T
Shifter	SRAM X01 EAGLE SL X01 EAGLE TRIGGER BLK
Bottom bracket	SRAM DUB PF30, 73mm
Cassette	SRAM XG-1275 Eagle 12s
Cog finish cassete Black Cog sizes 10-52t:10,12,14,16,18,21,24,28,32,36,42,52 Gearing 10-52t Model CS-XG-1275-B1 Name XG-1275 Eagle Cassette Speed 12s Technology cassete XG
Rear derailleur	SRAM X01 Eagle 12s
Cable pull ratio X-actuation Color Black, Lunar, Red Max tooth 52 Model RD-X0-1-B2 Name X01 Eagle Rear Derailleur Speed 12s
Chain	KMC Z9

Frameset
Frame	Rapide 29" CARBON XC hardtail, Boost
Front suspension	Fox 32 Float SC

Wheels
Rims	WTB KOM Light i25 29", TCS 2.0, 25mm inner diameter, 32 hole
Tires	SCHWALBE RACING RAY Evo,, 29" x 2,25", SnakeSkin, TLE, ADDIX SpeedGrip
Spokes	14G STAINLESS DB BLACK BLACK BRASS NIPPLES
Rear hub	WTB ProTerra, 32h, Boost 148x12mm, EZO Stainless Steel Radial Bearings, 6-bolt Disc / Ultra Quick 3.7 degree engagement / SRAM XD Driver
Front hub	WTB ProTerra 32h, Boost 110x15mm, EZO Stainless Steel Radial Bearings, 6-bolt Disc
