Vitus Rapide FS CR Mountain 2021

MTB Cross Country
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm

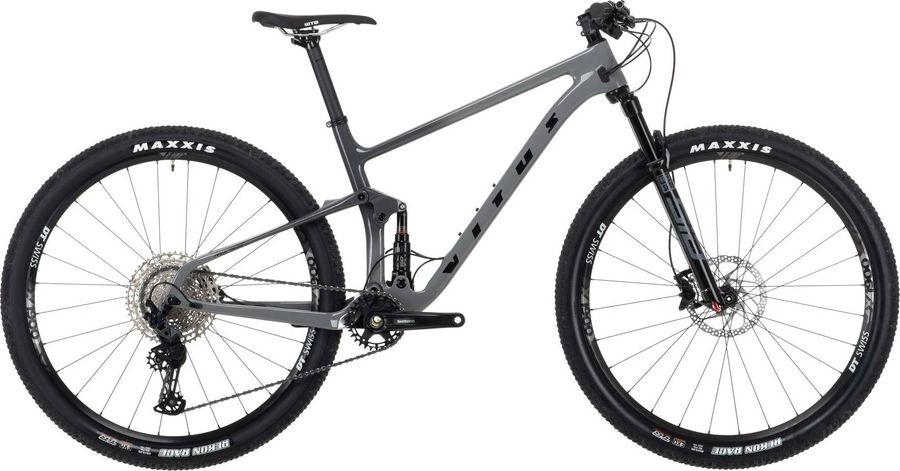

Vitus Rapide FS CR Mountain 2021

About the Vitus Rapide FS CR Mountain 2021

The Vitus Rapide FS CR Mountain 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and e-thru axle.

Features

The Vitus Rapide FS CR Mountain 2021 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Vitus lock on
Components
Steam
Vitus alloy 6061 3D forged, - 7° rise, reach – S -60mm/M-60mm/L -70mm/XL-80mm
Saddle
WTB SL8 Comp 142mm wide
Headset
Acros AZX-212-CO R5 Zero stack, sealed bearings, 1 1/8” – 1 ½”, ZS44/28.6 – 56/40
Seatpost
Vitus Vitus 31.6mm 400mm 6061 Black
Handlebar
Vitus 6061 alloy 5mm rise, 9° back sweep, 720mm wide S, 740mm wide M/ L/XL
Discs
Shimano RT56, 6 bolt, 180mm front / 160mm rear
Brakes
Shimano Deore BR-M6100 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad standard
G03S Resin
Pad standard
J03A Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
Shimano Deore M510, 30t, S 170mm/ M,L,XL 175mm
Shifter
Shimano SLX M7100 Rapidfire plus, 12 speed
Bottom bracket
Shimano SM-BB52
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Rapide FS FULL SUSPENSION UD CARBON FRAME, Boost hub spacing – 148mm x 12mm thru axle
Front suspension
RockShox SID SL Select DebonAir 1468 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RL
fork offset
44mm (29")
Max tire width (mm)
60
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-SIDS-SEL-C1
Name
SID SL Select
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Weight based on
100mm travel W/Maxle Stealth
Weight
1468
Wheel size
29"
Rear suspension
RockShox SIDluxe Select+ 236 g
Body eyelet
No Bushing, No Bushing - 90 Deg Rotation, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RLR
Eye to eye stroke
145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50
Lockout force
380, 430
Model
RS-SIDL-SELP-A1
Name
SIDLuxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
RL 190x45 0 Tokens
Weight
236
Wheels
Rims
DT Swiss X 1900 Spline 25mm 29", Boost – 110mm x 15mm thru axle
Tires
Maxxis Rekon Race, TR, EXO, 29” x 2.25”

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
440,0
490,0
540,0
b
Seat tube angle
77,0º
77,0º
77,0º
77,0º
c
Top tube length
571,0
605,0
633,0
657,0
d
Head tube length
95,0
105,0
120,0
140,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
109,0
109,0
109,0
109,0
h
Wheelbase
1152,0
1186,0
1217,0
1244,0
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
576,0
585,0
599,0
617,0
l
Reach
438,0
468,0
493,0
513,0
m
Standover height
-
-
-
-
x
Bottom bracket height
329,0
329,0
329,0
329,0
y
Front center
725,0
759,0
790,0
817,0
