Vitus Rapide FS CRX Mountain 2021

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,3 kg
Front travel
100mm

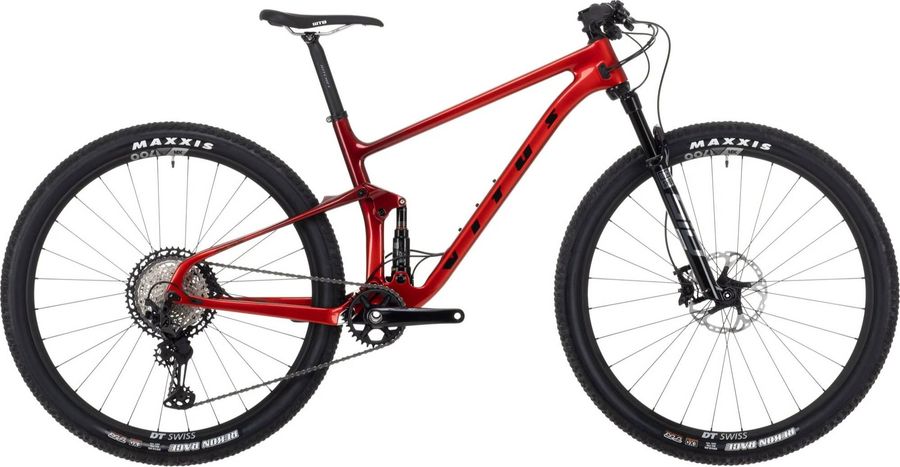

Vitus Rapide FS CRX Mountain 2021

About the Vitus Rapide FS CRX Mountain 2021

The Vitus Rapide FS CRX Mountain 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and e-thru axle. The bike weighs approximately 11,3 kg.

Features

The Vitus Rapide FS CRX Mountain 2021 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Vitus lock on
Components
Steam
Ritchey WCS C220 84D Forged 2014 alloy, +/- 6° rise, reach – S -50mm/M-60mm/L -70mm/XL-80mm
Saddle
WTB SL8 Comp 142mm wide
Headset
Acros AZX-212-CO R5
Seatpost
Ritchey WCS Zero D forged 7050 alloy, zero offset, 31.6mm x 400mm
Handlebar
Ritchey WCS Trail flat bar 6061 alloy, 5mm rise, 9° back sweep, 720mm wide S, 740mm wide M, 760mm wide L/XL
Discs
Shimano RT76, 6 bolt, 180mm front / 160mm rear
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Shimano XT M8100, 30t, S 170mm/ M,L,XL 175mm
Shifter
Shimano XT M8100 Rapidfire plus, 12 speed
Bottom bracket
Shimano BB52 68/73mm
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
Rapide FS FULL SUSPENSION UD CARBON FRAME, Boost hub spacing – 148mm x 12mm thru axle
Front suspension
RockShox SID SL Ultimate DebonAir 1326 g
Color
Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Gloss Blue
Damper type
Charger Race Day
fork offset
44mm (29")
Max tire width (mm)
60
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-SIDS-ULT-C1
Name
SID SL Ultimate
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Weight based on
100mm travel W/Maxle Stealth
Weight
1326
Wheel size
29"
Rear suspension
RockShox SIDluxe Select+ 236 g
Body eyelet
No Bushing, No Bushing - 90 Deg Rotation, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RLR
Eye to eye stroke
145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50
Lockout force
380, 430
Model
RS-SIDL-SELP-A1
Name
SIDLuxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
RL 190x45 0 Tokens
Weight
236
Wheels
Rims
DT Swiss X 1700 Spline 25mm 29", Boost – 110mm x 15mm thru axle
Tires
Maxxis Rekon Race, TR, EXO, 29” x 2.25”
Spokes
DT Swiss

Geometry

Size SM MD LG XL
a
Seat tube length
410,0
440,0
490,0
540,0
b
Seat tube angle
77,0º
77,0º
77,0º
77,0º
c
Top tube length
571,0
605,0
633,0
657,0
d
Head tube length
95,0
105,0
120,0
140,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
109,0
109,0
109,0
109,0
h
Wheelbase
1152,0
1186,0
1217,0
1244,0
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
576,0
585,0
599,0
617,0
l
Reach
438,0
468,0
493,0
513,0
m
Standover height
-
-
-
-
x
Bottom bracket height
329,0
329,0
329,0
329,0
y
Front center
725,0
759,0
790,0
817,0
