Vitus Rapide VR 2020

MTB Cross Country
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
12,51 kg
Front travel
100mm
Vitus Rapide VR 2020

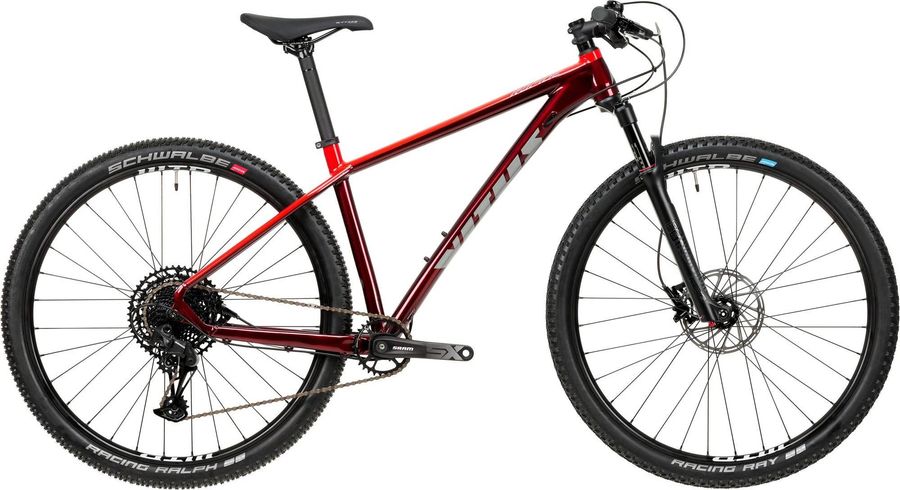

About the Vitus Rapide VR 2020

The Vitus Rapide VR 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 12,51 kg.

Features

The Vitus Rapide VR 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
VITUS Tapered, single alloy clamp, sticky rubber
Components
Steam
Vitus 3D FORGED 31.8MM -7DEG S:70MM / M:80MM / L:90MM / XL:100MM
Saddle
VITUS N/A
Headset
ACROS Zero Stack 44/28 - 56/40
Seatpost
VITUS 31.6x400m/m ALLOY 6061
Handlebar
Vitus 5mm RISE, 9 DEGREE BACK SWEEP, 31.8mm diameter S720mm / M740mm / L740mm / XL740mm)
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
SRAM SX Eagle, 30T, 53mm BOOST chainline, Powerspline S: 170mm, M,L,XL:175mm
Shifter
SRAM SX Eagle 12-SPEED
Bottom bracket
SRAM SX Eagle, Theaded 73mm BSA, Powerspline
Cassette
SRAM SX Eagle
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Chain
KMC Z9
Frameset
Frame
Rapide 29" alloy XC hardtail, Boost, AL6061
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
WTB STlight i25 TCS 2.0, 29", 25mm inner diameter, 32 hole, Sleeved Joint
Tires
SCHWALBE RACING RAY Evo,, 29" x 2,25", SnakeSkin, TLE, ADDIX SpeedGrip
Spokes
14G STAINLESS DB BLACK BLACK BRASS NIPPLES
Rear hub
VITUS M5ER, Boost 12x148mm, DOUBLE SEALED BEARINGS, 32H, Shimano 11spd Driver Body, 6 BOLT
Front hub
VITUS DHF112 Boost 15x110mm, DOUBLE SEALED BEARINGS, 32H, 6 BOLT

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
440,0
480,0
530,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
597,0
617,0
637,0
657,0
d
Head tube length
95,0
100,0
115,0
125,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
51,0
51,0
47,0
51,0
g
Trail
104,0
104,0
108,0
104,0
h
Wheelbase
1128,7
1151,5
1168,1
1194,2
i
Chainstay length
442,0
442,0
442,0
442,0
j
Bottom bracket drop
65,0
60,0
60,0
60,0
k
Stack height
628,0
628,0
642,0
651,0
l
Reach
407,0
427,0
442,0
460,0
m
Standover height
-
-
-
-
x
Bottom bracket height
309,0
314,0
314,0
314,0
y
Front center
695,0
716,0
733,0
759,0
