Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,7 kg
Front travel
140mm

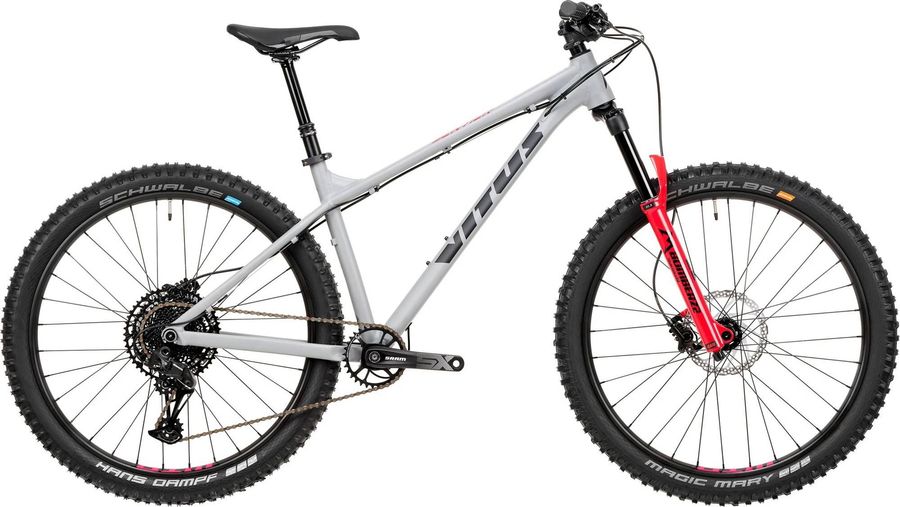

About the Vitus Sentier 27 VR 2020
The Vitus Sentier 27 VR 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,7 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
VITUS Tapered, single alloy clamp, sticky rubber
|
|---|
|
Steam
|
VITUS 50mm, 31.8mm bar diameter, 3deg rise, stack 45mm
|
|---|---|
|
Saddle
|
Nukeproof Neutron N/A
|
|
Headset
|
ACROS ZS 44mm/56mm
|
|
Seatpost
|
Brand X Ascend 31.6mm, Left hand remote lever, S100mm, M120mm, L150mm, XL 170mm
|
|
Handlebar
|
Nukeproof Neutron 25mm Rise, Width - S760mm, M780mm, L800mm, XL800mm, 31.8mm bar diameter
|
|
Brakes
|
Shimano Deore BR-MT501
|
|
Crankset
|
SRAM SX Eagle, 32T, 170mm, GXP 73mm, 53mm BOOST chainline, Powerspline
|
|---|---|
|
Shifter
|
SRAM SX Eagle N/A
|
|
Bottom bracket
|
SRAM SX Eagle, Theaded 73mm BSA, Powerspline
|
|
Cassette
|
SRAM SX Eagle
|
|
Rear derailleur
|
SRAM SX Eagle
12s
|
|
|
|
|
Chain
|
KMC Z9
|
|
Frame
|
Sentier 27.5" hardtail frame, Boost spacing, 6061 alloy
|
|---|---|
|
Front suspension
|
Marzocchi Bomber Z2
|
|
Rims
|
WTB ST i30 TCS 2.0, 27.5", 30mm inner diameter, 32 hole, Pinned Joint
|
|---|---|
|
Tires
|
SCHWALBE MAGIC MARY Evo, 27.5" x 2.6", SnakeSkin, TLE, APEX, ADDIX Soft
|
|
Spokes
|
14G STAINLESS DB BLACK BLACK BRASS NIPPLES
|
|
Rear hub
|
VITUS M5ER, Boost 12x148mm, DOUBLE SEALED BEARINGS, 32H, Shimano 11spd Driver Body, 6 BOLT
|
|
Front hub
|
VITUS DHF112 Boost 15x110mm, DOUBLE SEALED BEARINGS, 32H, 6 BOLT
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
432,0
|
483,0
|
520,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
597,0
|
617,0
|
637,0
|
662,0
|
|
d
Head tube length
|
105,0
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
112,0
|
112,0
|
112,0
|
112,0
|
|
h
Wheelbase
|
1131,0
|
1152,0
|
1173,0
|
1199,0
|
|
i
Chainstay length
|
422,0
|
422,0
|
422,0
|
422,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
610,0
|
614,0
|
623,0
|
632,0
|
|
l
Reach
|
410,0
|
429,0
|
446,0
|
468,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
713,0
|
734,0
|
755,0
|
781,0
|
