Vitus Sentier 27 VRS 2019

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
140mm

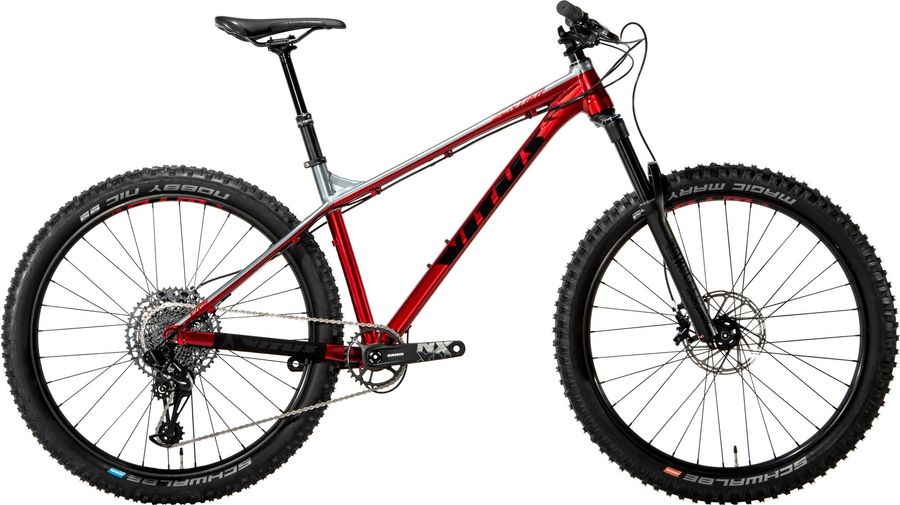

Vitus Sentier 27 VRS 2019

About the Vitus Sentier 27 VRS 2019

The Vitus Sentier 27 VRS 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Vitus Sentier 27 VRS 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Nukeproof Neutron, 45mm
Saddle
Nukeproof Neutron
Headset
FSA, 1 1/8
Seatpost
Brand X Ascend Dropper, 31.6mm Drop S:100mm M: 120mm L & XL: 150mm
Handlebar
Nukeproof Horizon, 31.8mm, 25mm rise
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
SRAM NX Eagle, 32T
Shifter
SRAM NX Eagle, 1x12
Bottom bracket
SRAM
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
6061-T6 Alloy construction, longer, slacker and lower build and modern geometry
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i29
Tires
Scwhalbe Magic Mary (F) / Nobby Nick (R), 27.5x27.5x2.6” SnakeSkin, TL East, Apex, E-25, Addix Speedgrip
Rear hub
KT 32H, 148x12mm Boost
Front hub
KT 32H, 110x15mm Boost

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
432,0
483,0
520,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
597,0
617,0
637,0
662,0
d
Head tube length
105,0
110,0
120,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
112,0
112,0
112,0
112,0
h
Wheelbase
1131,0
1152,0
1173,0
1199,0
i
Chainstay length
422,0
422,0
422,0
422,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
610,0
614,0
623,0
632,0
l
Reach
410,0
429,0
446,0
468,0
m
Standover height
-
-
-
-
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
713,0
734,0
755,0
781,0
