Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
13,57 kg
Front travel
130mm

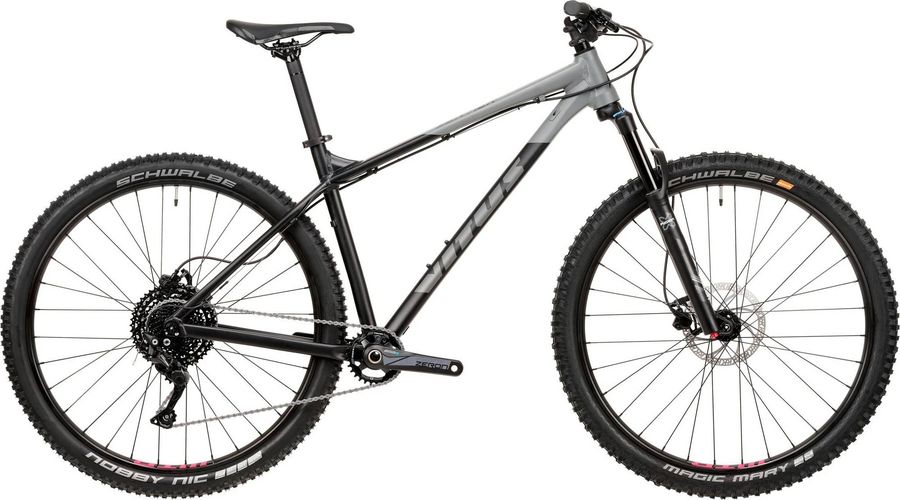

About the Vitus Sentier 29 2020
The Vitus Sentier 29 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 13,57 kg.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
VITUS Tapered, single composite clamp, sticky rubber
|
|---|
|
Steam
|
VITUS 50mm, 31.8mm bar diameter, 3deg rise, stack 45mm
|
|---|---|
|
Saddle
|
Nukeproof Neutron N/A
|
|
Headset
|
ACROS ZS 44mm/56mm
|
|
Seatpost
|
VITUS 31.6mm x 400mm, zero offset
|
|
Handlebar
|
Nukeproof Neutron 25mm Rise, Width - S760mm, M780mm, L800mm, XL800mm, 31.8mm bar diameter
|
|
Brakes
|
Tektro HD-M291
|
|
Crankset
|
SR SUNTOUR ZERON, 30T, 170mm, GXP 73mm, 53mm BOOST chainline
|
|---|---|
|
Shifter
|
SHIMANO DEORE 10 speed SL-M6000-R, 10-SPEED RAPIDFIRE PLUS
|
|
Bottom bracket
|
SR SUNTOUR, Theaded 73mm BSA
|
|
Cassette
|
Sunrace 10-speed
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC Z9
|
|
Frame
|
Sentier 29" hardtail frame, Boost spacing, 6061 alloy
|
|---|---|
|
Front suspension
|
X-Fusion RC32
|
|
Rims
|
WTB ST i30 TCS 2.0, 29", 30mm inner diameter, 32 hole, Pinned Joint
|
|---|---|
|
Tires
|
SCHWALBE MAGIC MARY Evo, 29" x 2.35", SnakeSkin, TLE, ADDIX Soft
|
|
Spokes
|
14G STAINLESS DB BLACK BLACK BRASS NIPPLES
|
|
Rear hub
|
VITUS M5ER, Boost 12x148mm, DOUBLE SEALED BEARINGS, 32H, Shimano 11spd Driver Body, 6 BOLT
|
|
Front hub
|
VITUS DHF112 Boost 15x110mm, DOUBLE SEALED BEARINGS, 32H, 6 BOLT
|
Geometry
| Size | MD | LG | XL |
|---|---|---|---|
|
a
Seat tube length
|
432,0
|
483,0
|
520,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
618,0
|
638,0
|
663,0
|
|
d
Head tube length
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
|
f
Rake
|
42,0
|
41,0
|
41,0
|
|
g
Trail
|
117,0
|
118,0
|
118,0
|
|
h
Wheelbase
|
1159,0
|
1180,0
|
1206,0
|
|
i
Chainstay length
|
437,0
|
437,0
|
437,0
|
|
j
Bottom bracket drop
|
61,5
|
61,5
|
61,5
|
|
k
Stack height
|
641,0
|
650,0
|
659,0
|
|
l
Reach
|
426,0
|
444,0
|
466,0
|
|
m
Standover height
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
313,0
|
313,0
|
313,0
|
|
y
Front center
|
729,0
|
750,0
|
776,0
|
