Vitus Sentier 29 VRX Mountain 2020

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
13,1 kg
Front travel
130mm

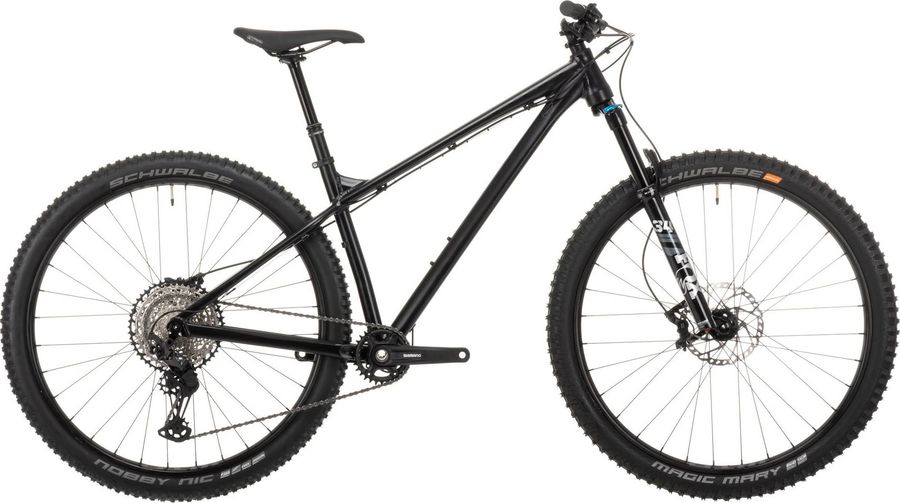

Vitus Sentier 29 VRX Mountain 2020

About the Vitus Sentier 29 VRX Mountain 2020

The Vitus Sentier 29 VRX Mountain 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,1 kg.

Features

The Vitus Sentier 29 VRX Mountain 2020 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Vitus lock on 0
Components
Steam
Nukeproof Neutron Alloy 6061, 45mm reach, 0° rise
Saddle
Nukeproof Neutron 0
Headset
ACROS AZX-212-CO AZX-212-CO, sealed bearings, ZS44/28.6 – ZS56/40
Seatpost
Brand-X Ascend dropper Remote lever, 31.6mm, S 100mm drop/M 125mm drop/L,XL 150mm drop
Handlebar
Nukeproof Neutron V2 riser 6061 alloy, 25mm rise, 9° back sweep, 760mm wide S/M, 780mm wide L/XL
Discs
Shimano RT66, 180mm/180mm 6 Bolt
Brakes
Shimano SLX BR-M7100 425 (BL-M7100) g Hydraulic disc brake 2 piston
Average weight (g)
425 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03S Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Shimano Deore M6111 12 speed, 32t, 170mm
Shifter
Shimano SLX M7100 Rapidfire plus, 12 speed
Bottom bracket
Shimano BB52 68/73mm
Front derailleur
0 0
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Sentier Aluminium 6061-T6 Double Butted, IS disc brake mounts, BSA threaded BB, Boost hub spacing – 148mm x 12mm thru axle
Front suspension
Fox 34 Float Performance
Wheels
Rims
WTB ST i30 TCS 2.0, 29”, 32h TCS tubeless tape fitted
Tires
Schwalbe Magic Mary, Snakeskin, TL Easy, E-25, Addix soft, 29” x 2.35”
Spokes
Vitus N/A
Rear hub
Vitus KT H5ER-SH, Double sealed bearings, 32h, 6 bolt, 148mm x 12mm thru axle
Front hub
Vitus KT DHF112 Double sealed bearings, 32h, 6 bolt, 110mm x 15mm thru axle

Geometry

Size MD LG XL
a
Seat tube length
432,0
483,0
520,0
b
Seat tube angle
73,0º
73,0º
73,0º
c
Top tube length
618,0
638,0
663,0
d
Head tube length
110,0
120,0
130,0
e
Head tube angle
66,5º
66,5º
66,5º
f
Rake
42,0
41,0
41,0
g
Trail
117,0
118,0
118,0
h
Wheelbase
1159,0
1180,0
1206,0
i
Chainstay length
437,0
437,0
437,0
j
Bottom bracket drop
61,5
61,5
61,5
k
Stack height
641,0
650,0
659,0
l
Reach
426,0
444,0
466,0
m
Standover height
-
-
-
x
Bottom bracket height
313,0
313,0
313,0
y
Front center
729,0
750,0
776,0
