Vitus Sommet 2018

MTB Enduro
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15 kg
Front travel
160mm
Rear travel
160mm

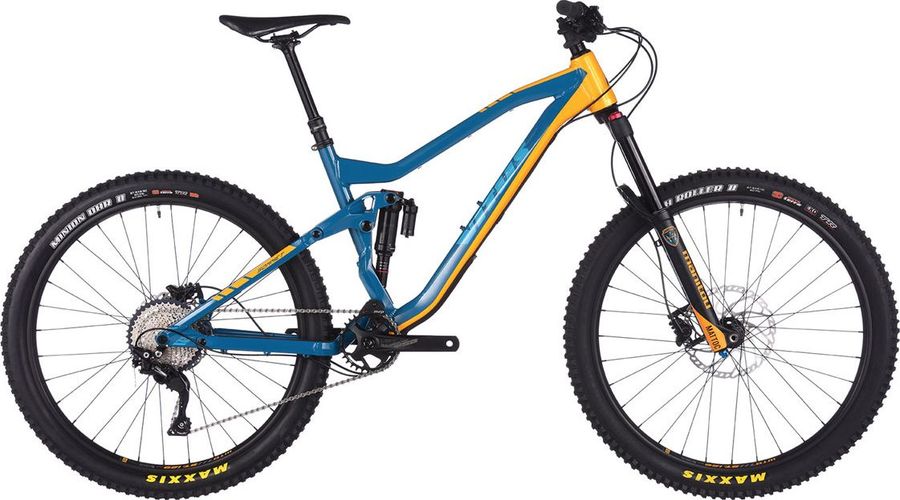

Vitus Sommet 2018

About the Vitus Sommet 2018

The Vitus Sommet 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 15 kg.

Features

The Vitus Sommet 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Zoom alloy, 40mm
Saddle
Nukeproof Neutron
Headset
FSA, 1 1/8
Seatpost
Brand-X Ascend Stealth Dropper, 31.6mm, S-120mm travel, M/L/XL-150mm travel
Handlebar
Nukeproof alloy, 25mm rise, S/M-780mm, L/XL-800mm
Brake lever
Shimano MT500
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
FSA Gamma Pro Mega Exo, 170mm, 32t, Black
Shifter
Shimano Deore, 1x10
Bottom bracket
FSA, Mega Exo (BSA), 73mm
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG500-10
Frameset
Front suspension
Manitou comp, 160mm travel, BOOST
Frame
6061-T6 Alloy, 160mm Suspension travel, 6061-T6 Alloy, BOOST
Rear suspension
RockShox Super Deluxe R
Body eyelet
Bearing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-R-B1
Name
Super Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
WTB, TCS, 27.5
Tires
Maxxis High roller II 2.4 3C/EXO/TR (FR) Minion DHR 2.3 3C/TR/DD (RR), Maxx Terra compound
Spokes
Double butted
Rear hub
Novatec, 12x148mm, 32h, 6 bolt
Front hub
Novatec, 15x110mm, 32h, 6 bolt

Geometry

Size SM MD LG XL
a
Seat tube length
382,0
433,0
483,0
523,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
594,0
615,0
636,0
661,0
d
Head tube length
110,0
120,0
130,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
124,0
124,0
125,0
125,0
h
Wheelbase
1182,0
1204,0
1225,0
1250,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
10,0
10,0
10,0
10,0
k
Stack height
591,0
600,0
610,0
610,0
l
Reach
434,0
452,0
469,0
494,0
m
Standover height
-
-
-
-
x
Bottom bracket height
345,0
345,0
345,0
345,0
y
Front center
748,0
770,0
791,0
816,0
