Vitus Sommet 27 2019

MTB Downhill
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm

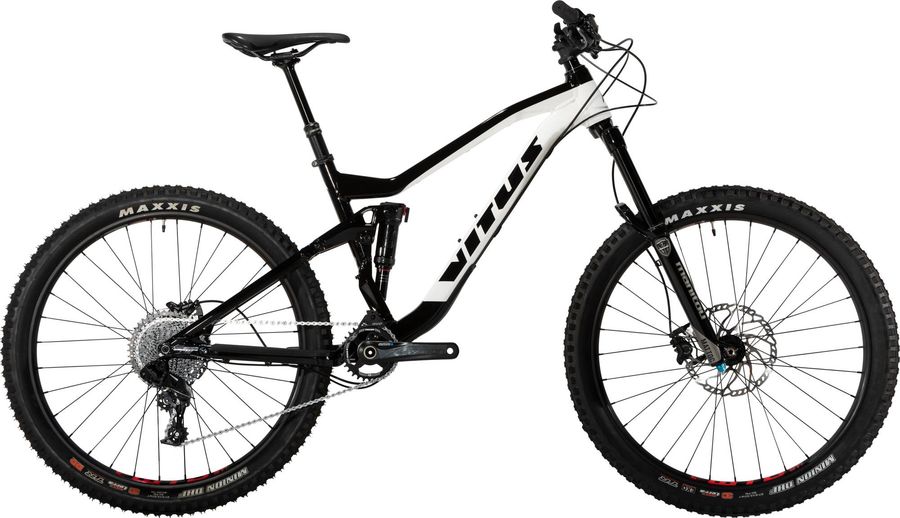

Vitus Sommet 27 2019

About the Vitus Sommet 27 2019

The Vitus Sommet 27 2019 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Vitus Sommet 27 2019 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Vitus
Saddle
Nukeproof Neutron
Headset
Nukeproof, 1 1/8-1.5 tapered
Seatpost
Brand X Ascend, 31.6mm S:100mm M: 120mm L & XL: 150mm
Handlebar
Nukeproof Neutron, 31.8mm 25mm rise Widths - S 780mm M 780mm L 800mm XL 800mm
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Suntour Zeron, 170mm, 30T
Shifter
SRAM NX, 11 Speed
Bottom bracket
Suntour
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Chain
KMC X11
Cassette
Sunrace 11-speed
Frameset
Frame
6061- T6 Alloy
Front suspension
Manitou Mattoc
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Wheels
Rims
WTB ST i29
Tires
Maxxis Minion DHF (F & R), 3C, 27.5x2.5”WT
Rear hub
Novatec D462SB, SL-S5S-B12-11S, 32H 148x12mm
Front hub
Novatec D791SB, B15, 32H 110x15mm

Geometry

Size SM MD LG XL
a
Seat tube length
382,0
433,0
483,0
523,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
594,0
615,0
636,0
661,0
d
Head tube length
110,0
120,0
130,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
124,0
124,0
125,0
125,0
h
Wheelbase
1182,0
1204,0
1225,0
1250,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
10,0
10,0
10,0
10,0
k
Stack height
591,0
600,0
610,0
610,0
l
Reach
434,0
452,0
469,0
494,0
m
Standover height
-
-
-
-
x
Bottom bracket height
345,0
345,0
345,0
345,0
y
Front center
748,0
770,0
791,0
816,0
