BikeWise

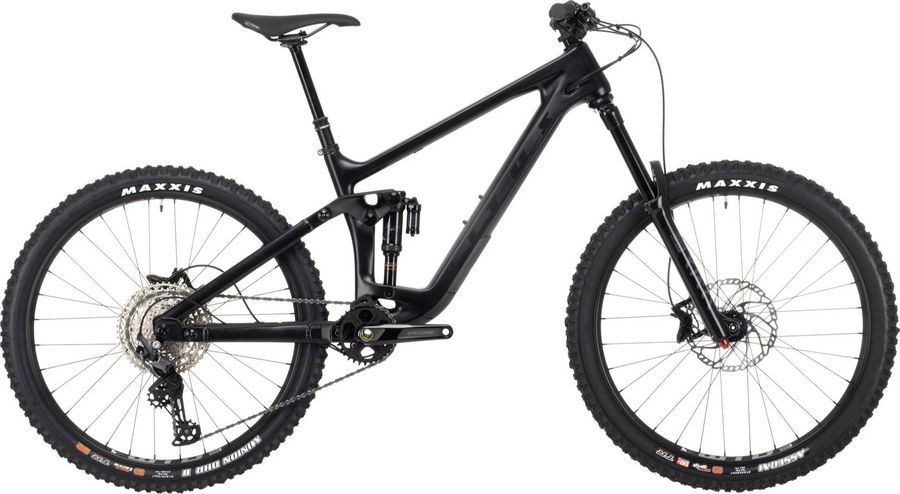

Vitus Sommet 27 CR Mountain 2021

MTB Enduro
Groupset
Shimano Deore
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,5 kg
Front travel
170mm
Vitus Sommet 27 CR Mountain 2021

About the Vitus Sommet 27 CR Mountain 2021

The Vitus Sommet 27 CR Mountain 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano Deore drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 15,5 kg.

Features

The Vitus Sommet 27 CR Mountain 2021 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info

Specifications

Acessories
Grip
Vitus lock on N/A
Components
Steam
Nukeproof Neutron Alloy 6061, 45mm reach, 0° rise 31.8mm
Saddle
Nukeproof Neutron N/A
Headset
Acros AZX-212-CO R5 Sealed bearings, OD44, 44/28.6 – 56/40
Seatpost
Brand-X Ascend dropper Remote lever, 31.6mm, S 125mm drop/M 150mm drop/L,XL 170mm drop
Handlebar
Nukeproof Horizon riser Alloy 7050, 25mm rise, 9° back sweep, 780mm wide S/M, 800mm wide L/XL
Discs
Shimano RT66, 203mm, 6 bolt
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano Deore M6100, 32t, 170mm
Shifter
Shimano Deore M6100 Rapidfire plus, 12 speed
Bottom bracket
Shimano SM-BB52, BS, 73mm BSA Threaded
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Rear derailleur
Shimano Deore RD-M6100 SGS 12s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M6100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Sommet T700 carbon front triangle, alloy 6061 rear,, Internal cable routing, post mount disc brake mounts, BSA threaded BB, Boost hub spacing – 148mm x 12mm thru axle
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe Select 440 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-SEL-B2
Name
Super Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
440
Wheels
Rims
WTB KOM Trail i30 TCS, 27.5”, 32h tubeless tape fitted
Tires
Maxxis Assegai, 3C MaxxGrip compound, EVO+, 27.5” x 2.50”
Spokes
Vitus Vitus
Rear hub
Vitus KT H5ER-SH, Double sealed bearings, 32h, 6 bolt, Boost - 148mm x 12mm thru axle
Front hub
Vitus KT DHF112 Double sealed bearings, 32h, 6 bolt, Boost - 110mm x 15mm thru axle

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
410,0
440,0
470,0
b
Seat tube angle
76,5º
76,5º
77,0º
77,5º
c
Top tube length
566,0
594,0
618,0
642,0
d
Head tube length
110,0
120,0
130,0
140,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
37,0
36,0
37,0
37,0
g
Trail
132,0
133,0
132,0
132,0
h
Wheelbase
1185,0
1214,0
1246,0
1278,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
k
Stack height
599,0
609,0
618,0
627,0
l
Reach
421,0
446,0
473,0
501,0
m
Standover height
-
-
-
-
x
Bottom bracket height
-
-
-
-
y
Front center
753,0
782,0
814,0
846,0
