Vitus Sommet 27 CRS 2020

MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,05 kg
Front travel
170mm
Rear travel
160mm

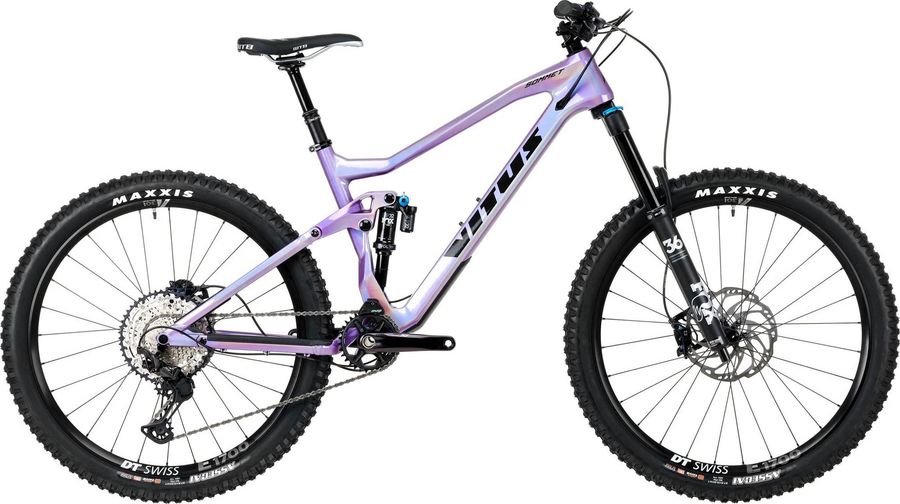

Vitus Sommet 27 CRS 2020

About the Vitus Sommet 27 CRS 2020

The Vitus Sommet 27 CRS 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 15,05 kg.

Features

The Vitus Sommet 27 CRS 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VITUS Tapered, single alloy clamp, sticky rubber
Components
Steam
Nukeproof Neutron 45mm, 31.8mm bar diameter, 0deg rise
Saddle
WTB Volt 142 COMP 0
Headset
ACROS ZS 44mm/56mm
Seatpost
Brand X Ascend 31.6mm, Left hand remote lever, S125mm, M150mm, L&XL170mm
Handlebar
Nukeproof Horizon AL7050, 25mm Rise, Back 9deg, up 6deg, Bar Diameter 31.8mm Width - S780mm, M780mm, L800mm, XL800mm Width - S780mm, M780mm, L800mm, XL800mm
Brakes
Shimano SLX BR-M7120 444 (BL-M7100) g Hydraulic disc brake 4 piston
Average weight (g)
444 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D02S Metal (w/o fin)
Pad option
N04C Metal (w/ fin)
Pad standard
D03S Resin (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano XT 12 speed, FC-M8100-1, HOLLOWTECH 2, 170MM, 32T, CHAIN LINE 52MM
Shifter
Shimano SLX 12 speed SL-M7100-IR, 12-SPEED RAPIDFIRE PLUS, I-Spec EV
Bottom bracket
SHIMANO MT500, Pressfit 92
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
KMC Z9
Frameset
Frame
Sommet 27.5" 160mm travel CARBON full suspension frame, Boost, Carbon front triangle, 6061 Alloy rear
Rear suspension
Fox Float DPX2 Performance EVOL
Front suspension
Fox 36 Float Performance
Wheels
Rims
DT SWISS E1700 30 27.5", 30mm inner rim width,
Tires
MAXXIS ASSEGAI, 27.5"x2.5"WT, 3C MaxxTerra/EXO+/TR
Spokes
DT SWISS
Rear hub
DT SWISS E1700 30, Boost 12x148mm, CENTRE LOCK, Shimano 12 speed MICROSPLINE
Front hub
DT SWISS E1700 30 Boost 15x110mm, CENTRE LOCK

Geometry

Size SM MD LG XL
a
Seat tube length
382,0
433,0
483,0
523,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
594,0
615,0
636,0
661,0
d
Head tube length
110,0
120,0
130,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
43,0
43,0
43,0
43,0
g
Trail
111,0
111,0
111,0
111,0
h
Wheelbase
1176,0
1198,0
1219,0
1244,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
10,0
10,0
10,0
10,0
k
Stack height
594,0
603,0
612,0
612,0
l
Reach
434,0
452,0
469,0
494,0
m
Standover height
-
-
-
-
x
Bottom bracket height
345,0
345,0
345,0
345,0
y
Front center
742,0
764,0
785,0
810,0
