Vitus Sommet 29 CRX Mountain 2021

MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
15,27 kg
Front travel
170mm

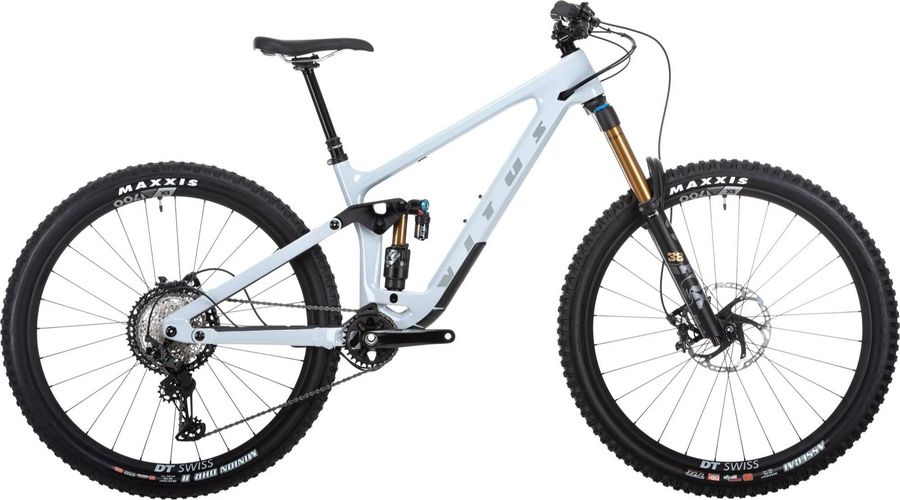

Vitus Sommet 29 CRX Mountain 2021

About the Vitus Sommet 29 CRX Mountain 2021

The Vitus Sommet 29 CRX Mountain 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 15,27 kg.

Features

The Vitus Sommet 29 CRX Mountain 2021 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info

Specifications

Acessories
Grip
Vitus lock on N/A
Components
Steam
Nukeproof Horizon Alloy 6061, 45mm reach, 0° rise 31.8mm
Saddle
WTB Volt Medium 142mm x 265mm, Cro-moly rails
Headset
Acros AZX-212-CO R5 Sealed bearings, OD44, 44/28.6 – 56/40
Seatpost
Brand-X Ascend dropper Remote lever, 31.6mm, S 125mm drop/M 150mm drop/L,XL 170mm drop
Handlebar
Nukeproof Horizon riser Alloy 7050, 25mm rise, 9° back sweep, 780mm wide S/M, 800mm wide L/XL
Discs
Shimano RT76, 203mm, 6 bolt
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Shimano XT M8100, 30t, 170mm
Shifter
Shimano XT M8100 Rapidfire plus, 12 speed
Bottom bracket
Shimano SM-BB52, BS, 73mm BSA Threaded
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
Sommet T700 carbon front triangle, alloy 6061 rear,, Internal cable routing, post mount disc brake mounts, BSA threaded BB, Boost hub spacing – 148mm x 12mm thru axle
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 38 Float Factory Kashima
Wheels
Rims
DT Swiss EX 1700 Spline 30, 15x110mm, 29", 6 Bolt – 110mm x 15mm thru axle
Tires
Maxxis Assegai, 3C MaxxGrip compound, EVO+, 29” x 2.50”
Spokes
DT Swiss N/A
Rear hub
DT Swiss EX 1700, 6 Bolt, Shimano microspline driver, Boost – 148mm x 12mm thru axle
Front hub
DT Swiss EX 1700 110mm x 15mm thru axle, 6 Bolt

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
410,0
440,0
470,0
b
Seat tube angle
76,5º
76,5º
77,0º
77,5º
c
Top tube length
565,0
594,0
618,0
642,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
42,0
43,0
42,0
42,0
g
Trail
136,0
135,0
136,0
136,0
h
Wheelbase
1192,0
1222,0
1254,0
1285,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
k
Stack height
618,0
627,0
636,0
645,0
l
Reach
415,0
440,0
468,0
495,0
m
Standover height
-
-
-
-
x
Bottom bracket height
-
-
-
-
y
Front center
756,0
786,0
818,0
849,0
