Vitus Sommet 29 VR 2020

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
16,06 kg
Front travel
170mm
Rear travel
160mm

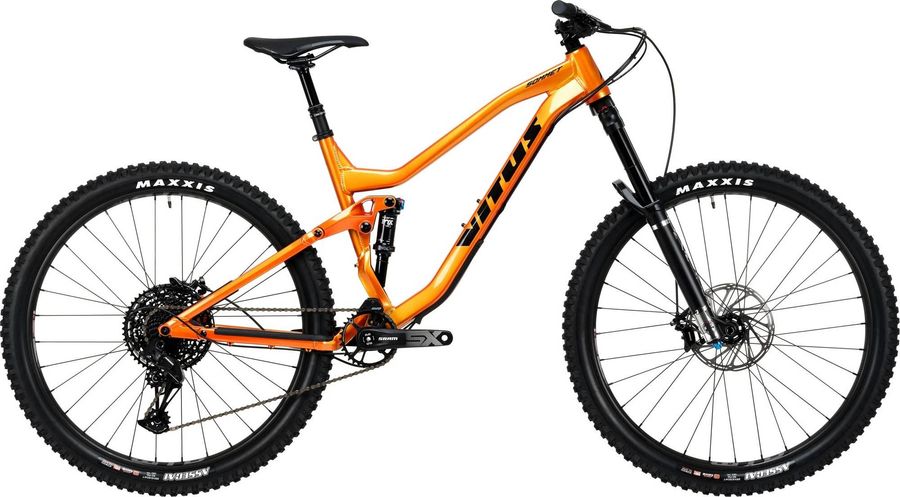

Vitus Sommet 29 VR 2020

About the Vitus Sommet 29 VR 2020

The Vitus Sommet 29 VR 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 16,06 kg.

Features

The Vitus Sommet 29 VR 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VITUS Tapered, single alloy clamp, sticky rubber
Components
Steam
Nukeproof Neutron 45mm, 31.8mm bar diameter, 0deg rise
Saddle
Nukeproof Neutron N/A
Headset
ACROS ZS 44mm/56mm
Seatpost
Brand X Ascend 31.6mm, Left hand remote lever, S125mm, M150mm, L&XL170mm
Handlebar
Nukeproof Horizon AL7050, 25mm Rise, Back 9deg, up 6deg, Bar Diameter 31.8mm Width - S780mm, M780mm, L800mm, XL800mm
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
SRAM SX EAGLE, BOOST148 DUB, 170mm, 32T
Shifter
SRAM SX EAGLE N/A
Bottom bracket
SRAM BSA MTB73, N/A
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Chain
KMC Z9
Frameset
Frame
Sommet 29" 160mm travel full suspension frame, Boost, 6061 Alloy
Rear suspension
Fox Float DPS Performance EVOL
Front suspension
Manitou Mezzer Pro
Wheels
Rims
WTB ST Light i30 TCS 2.0, 29", 30mm innse rim width, Sleeved, 32 hole
Tires
MAXXIS ASSEGAI, 29"x2.5"WT, 3C MaxxTerra/EXO+/TR
Spokes
STAINLESS Double Butted BLACK BLACK BRASS NIPPLES
Rear hub
VITUS M5ER, Boost 12x148mm, DOUBLE SEALED BEARINGS, 32H, Shimano 11spd Driver Body, 6 BOLT
Front hub
VITUS DHF112 Boost 15x110mm, DOUBLE SEALED BEARINGS, 32H, 6 BOLT

Geometry

Size SM MD LG XL
a
Seat tube length
382,0
433,0
483,0
523,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
572,0
600,0
623,0
651,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
120,0
120,0
120,0
120,0
h
Wheelbase
1197,27
1226,42
1250,56
1279,7
i
Chainstay length
449,0
449,0
449,0
449,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
k
Stack height
625,0
634,0
643,0
652,0
l
Reach
424,0
449,0
469,0
494,0
m
Standover height
-
-
-
-
x
Bottom bracket height
349,0
349,0
349,0
349,0
y
Front center
749,0
779,0
803,0
832,0
