Yeti ARC 35th 2020

MTB Trail
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
11,15 kg
Front travel
130mm

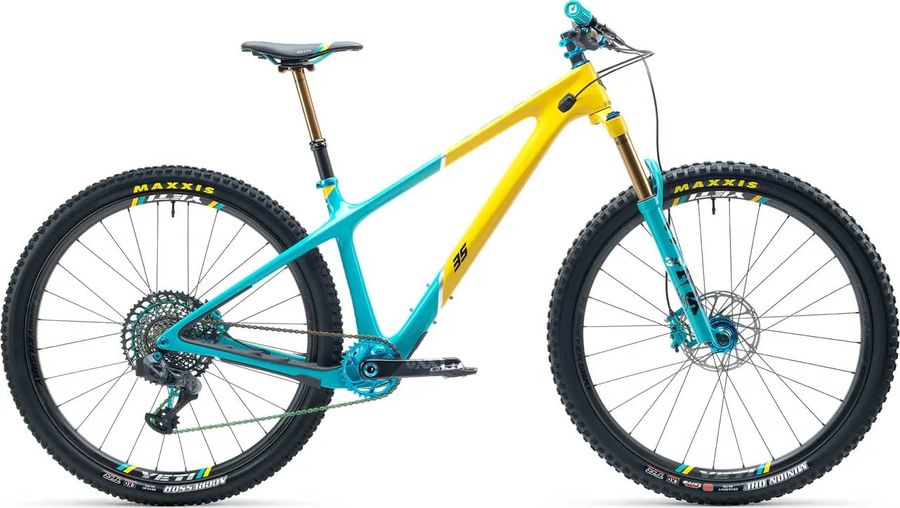

Yeti ARC 35th 2020

About the Yeti ARC 35th 2020

The Yeti ARC 35th 2020 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain. Its features include dropper seatpost, boost 148, and hydraulic disc brakes. The bike weighs approximately 11,15 kg.

Features

The Yeti ARC 35th 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
ODI ELITE PRO
Components
Steam
RACE FACE TURBINE R 35X50MM
Saddle
WTB SILVERADO 142MM CUSTOM
Headset
CHRIS KING INTEGRATED
Seatpost
FOX TRANSFER FACTORY 31.6MM / 175MM
Handlebar
YETI CARBON 35X760MM CUSTOM
Discs
SRAM CENTERLINE 180/SRAM CENTERLINE 180
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 EAGLE 32T 170MM CUSTOM
Shifter
SRAM EAGLE AXS
Bottom bracket
SRAM DUB BB92
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
TURQ Series carbon fiber frame, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, integrated derailleur hanger, and axle.
Front suspension
Fox 34 Factory
Wheels
Rims
CUSTOM WHEELSET
Tires
MAXXIS MINION DHF 2.5 EXO

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
410,0
450,0
495,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
574,4
601,3
623,0
650,4
d
Head tube length
95,0
102,9
109,6
119,6
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1140,5
1168,5
1191,2
1220,1
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
64,0
64,0
64,0
64,0
k
Stack height
628,7
635,9
642,1
651,3
l
Reach
417,0
442,0
462,0
487,0
m
Standover height
720,0
719,0
717,0
717,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
710,5
738,5
761,2
790,1
