Yeti SB100 — C/Series / C1 2020
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13 kg
Front travel
120mm
Rear travel
100mm

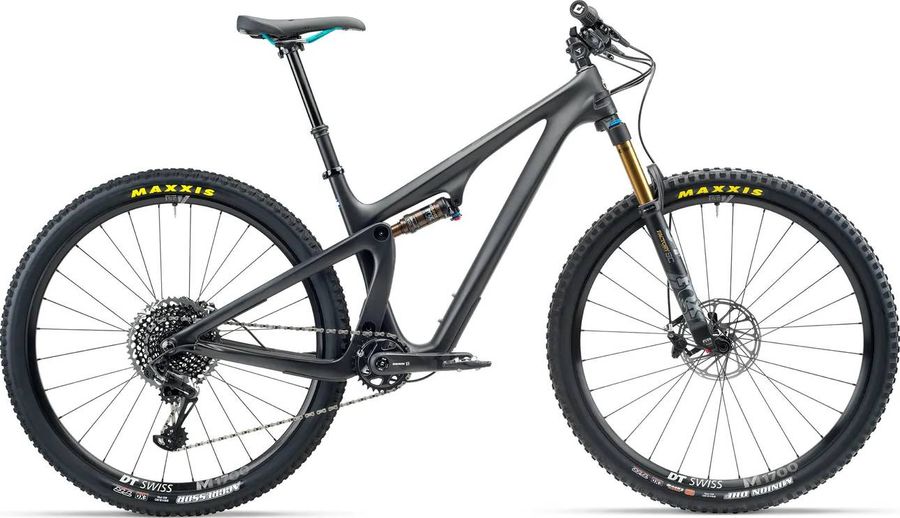

About the Yeti SB100 — C/Series / C1 2020
The Yeti SB100 — C/Series / C1 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain. Its features include dropper seatpost, boost 148, and hydraulic disc brakes. The bike weighs approximately 13 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
Grip
|
ODI ELITE PRO
|
---|
Steam
|
RACE FACE RIDE 35X50MM
|
---|---|
Saddle
|
WTB VOLT CUSTOM
|
Headset
|
CANE CREEK 40 INTEGRATED
|
Seatpost
|
FOX TRANSFER 30.9MM / SM: 125MM, MD-LG: 150MM, XL: 175MM
|
Handlebar
|
RACE FACE AEFFECT R 35X760MM
|
Discs
|
SRAM CENTERLINE 180/160
|
Brakes
|
SRAM Guide R
Hydraulic
392 g
|
|
Crankset
|
SRAM GX EAGLE 30T SM: 170MM, MD-XL: 175MM
|
---|---|
Shifter
|
SRAM GX EAGLE
|
Bottom bracket
|
SRAM DUB BB92
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
Frame
|
C/Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
|
---|---|
Rear suspension
|
Fox Float DPS Performance
|
Front suspension
|
Fox 34 Performance SC
|
Rims
|
DT SWISS M1900 25MM
|
---|---|
Tires
|
MAXXIS MINION DHF 2.3 EXO
|
Geometry
Size | SM | MD | LG | XL |
---|---|---|---|---|
a
Seat tube length
|
393,0
|
419,0
|
457,0
|
495,0
|
b
Seat tube angle
|
74,3º
|
74,2º
|
74,1º
|
74,0º
|
c
Top tube length
|
569,7
|
598,2
|
623,3
|
650,2
|
d
Head tube length
|
96,2
|
107,0
|
123,2
|
144,7
|
e
Head tube angle
|
67,8º
|
67,8º
|
67,8º
|
67,8º
|
f
Rake
|
-
|
-
|
-
|
-
|
g
Trail
|
-
|
-
|
-
|
-
|
h
Wheelbase
|
1115,3
|
1144,4
|
1170,4
|
1198,5
|
i
Chainstay length
|
430,2
|
430,2
|
430,2
|
430,2
|
j
Bottom bracket drop
|
42,0
|
42,0
|
42,0
|
42,0
|
k
Stack height
|
595,0
|
605,1
|
620,1
|
640,2
|
l
Reach
|
400,1
|
425,1
|
445,1
|
465,1
|
m
Standover height
|
717,0
|
717,0
|
717,0
|
717,0
|
x
Bottom bracket height
|
332,1
|
332,1
|
332,0
|
332,0
|
y
Front center
|
985,2
|
714,2
|
740,2
|
768,3
|
