Yeti SB100 — T/Series / XX1 2019

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,66 kg
Front travel
120mm
Rear travel
100mm

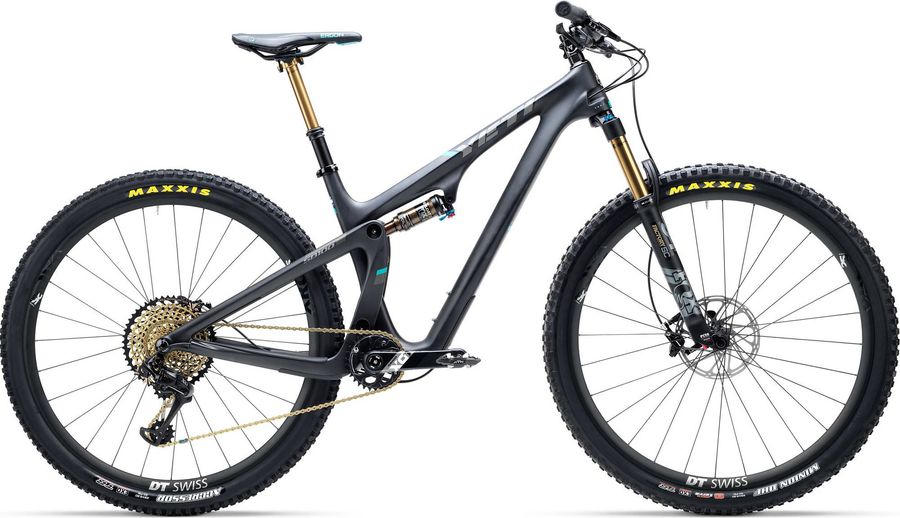

Yeti SB100 — T/Series / XX1 2019

About the Yeti SB100 — T/Series / XX1 2019

The Yeti SB100 — T/Series / XX1 2019 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain. Its features include internal routing, dropper seatpost, and boost 148. The bike weighs approximately 11,66 kg.

Features

The Yeti SB100 — T/Series / XX1 2019 has 4 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
ERGON GE1
Components
Steam
RACE FACE TURBINE 35x50mm
Saddle
ERGON SME3 CUSTOM
Headset
CANE CREEK 40 INTEGRATED
Seatpost
FOX TRANSFER FACTORY 30.9MM / SM: 100MM, MD: 125MM, L-XL: 150MM
Handlebar
YETI CARBON 35x760mm
Discs
SRAM CENTERLINE Front 180mm / Rear 160mm
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM X01 CARBON EAGLE 30T
Shifter
SRAM XX1 EAGLE
Bottom bracket
SRAM DUB BB92
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
Front suspension
Fox 34 Factory SC
Rear suspension
Fox Float DPS Factory
Wheels
Rims
DT SWISS XM 1501 SPLINE ONE 25
Tires
MAXXIS MINION DHF 2.3

Geometry

Size SM MD LG XL
a
Seat tube length
393,0
419,0
457,0
495,0
b
Seat tube angle
74,3º
74,2º
74,1º
74,0º
c
Top tube length
569,7
598,2
623,3
650,2
d
Head tube length
96,2
107,0
123,2
144,7
e
Head tube angle
67,8º
67,8º
67,8º
67,8º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1115,3
1144,4
1170,4
1198,5
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
42,0
42,0
42,0
42,0
k
Stack height
595,0
605,1
620,1
640,2
l
Reach
400,1
425,1
445,1
465,1
m
Standover height
717,0
717,0
717,0
717,0
x
Bottom bracket height
332,0
332,0
332,0
332,0
y
Front center
685,2
714,2
740,2
768,3
