BikeWise

Yeti SB130 — T/Series / T3 2020

MTB Trail
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,32 kg
Front travel
150mm
Rear travel
130mm

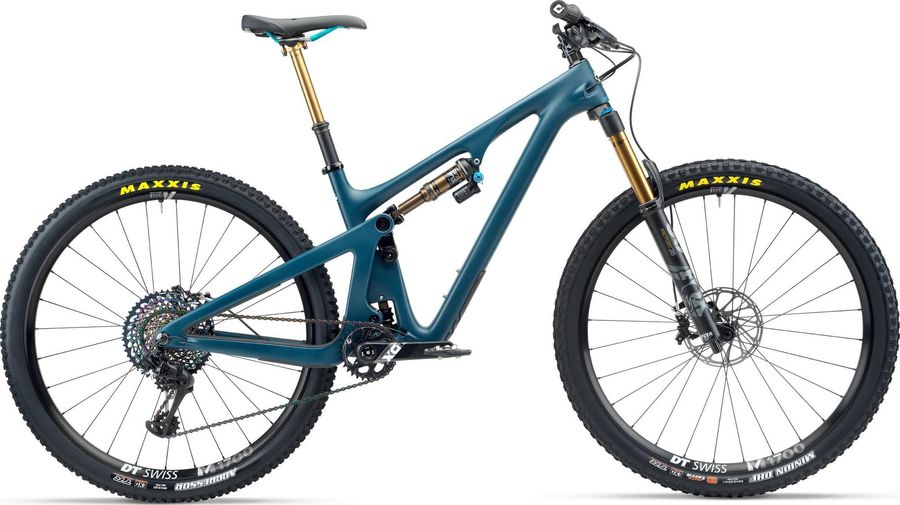

Yeti SB130 — T/Series / T3 2020

About the Yeti SB130 — T/Series / T3 2020

The Yeti SB130 — T/Series / T3 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain. Its features include internal routing, dropper seatpost, and boost 148. The bike weighs approximately 13,32 kg.

Features

The Yeti SB130 — T/Series / T3 2020 has 4 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
ODI ELITE PRO
Components
Steam
RACE FACE TURBINE 35X50MM
Saddle
WTB VOLT CUSTOM
Headset
CANE CREEK 40 INTEGRATED
Seatpost
FOX TRANSFER FACTORY 31.6MM / SM: 125MM, MD: 150MM, LG-XL: 175MM
Handlebar
YETI CARBON 35X780MM
Discs
SRAM CENTERLINE 180/180
Brakes
SRAM G2 RSC Hydraulic 248 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black
Model
DB-G2-RSC-A1
Name
G2 RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Weight
248
Drivetrain
Crankset
SRAM X01 EAGLE 30T 170MM
Shifter
SRAM XX1 EAGLE
Bottom bracket
SRAM DUB BB92
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
TURQ Series carbon fiber frame, trail inspired geometry, Switch Infinity suspension technology, press-fit BB92, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max bearing pivots, integrated derailleur hanger, and axle.
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
DT SWISS M1700 30MM
Tires
MAXXIS MINION DHF 2.5 EXO

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
410,0
450,0
495,0
b
Seat tube angle
77,1º
77,0º
76,9º
76,9º
c
Top tube length
567,7
598,9
622,2
650,4
d
Head tube length
95,0
99,2
110,2
121,2
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1170,9
1202,6
1227,2
1256,7
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
37,0
37,0
37,0
37,0
k
Stack height
608,0
611,8
621,8
631,8
l
Reach
427,2
457,2
477,2
502,2
m
Standover height
720,5
722,9
725,2
727,6
x
Bottom bracket height
337,6
337,7
337,7
337,7
y
Front center
740,9
772,6
797,2
826,7
