Yeti SB130 — T/Series / X01 2019

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,14 kg
Front travel
150mm
Rear travel
130mm
Yeti SB130 — T/Series / X01 2019

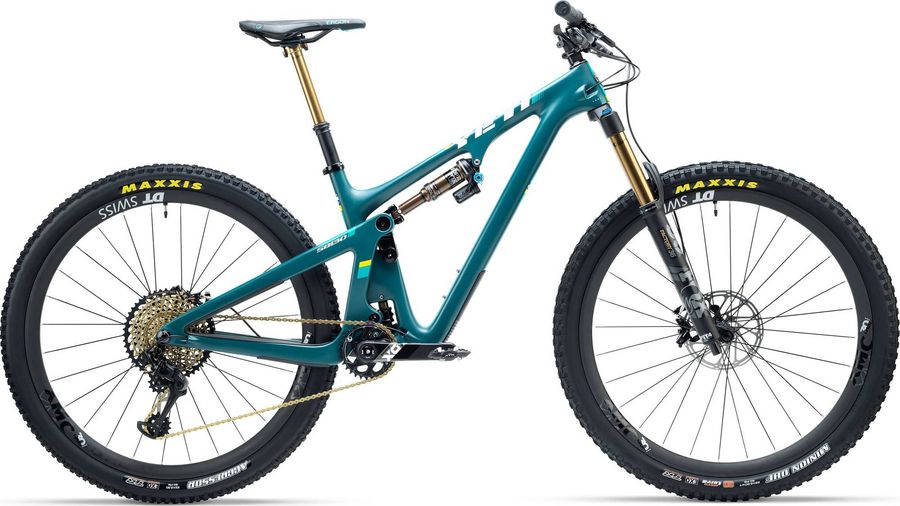

About the Yeti SB130 — T/Series / X01 2019

The Yeti SB130 — T/Series / X01 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain. Its features include internal routing, dropper seatpost, and boost 148. The bike weighs approximately 13,14 kg.

Features

The Yeti SB130 — T/Series / X01 2019 has 4 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
ERGON GE1
Components
Steam
RACE FACE AEFFECT R 35X40MM
Saddle
WTB CUSTOM VOLT
Headset
CANE CREEK 40 INTEGRATED
Seatpost
FOX TRANSFER 31.6MM / SM: 125MM, MD-XL: 150MM
Handlebar
YETI CARBON 35X780MM
Discs
SHIMANO 180mm
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
SRAM X01 CARBON EAGLE 30T
Shifter
SRAM GX EAGLE
Bottom bracket
SRAM DUB BB92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
TURQ Series carbon fiber frame, trail inspired geometry, Switch Infinity suspension technology, press-fit BB92, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max bearing pivots, integrated derailleur hanger, and axle.
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
DT SWISS M1700 30MM
Tires
MAXXIS MINION DHF 2.5

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
410,0
450,0
495,0
b
Seat tube angle
77,1º
77,0º
76,9º
76,9º
c
Top tube length
567,7
598,9
622,2
650,4
d
Head tube length
95,0
99,2
110,2
121,2
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1170,9
1202,6
1227,2
1256,7
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
37,0
37,0
37,0
37,0
k
Stack height
608,0
611,8
621,8
631,8
l
Reach
427,2
457,2
477,2
502,2
m
Standover height
720,5
722,9
725,2
727,6
x
Bottom bracket height
337,6
337,7
337,7
337,7
y
Front center
740,9
772,6
797,2
826,7
