Yeti SB140 — C/Series / C2 2020

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,65 kg
Front travel
160mm
Rear travel
140mm

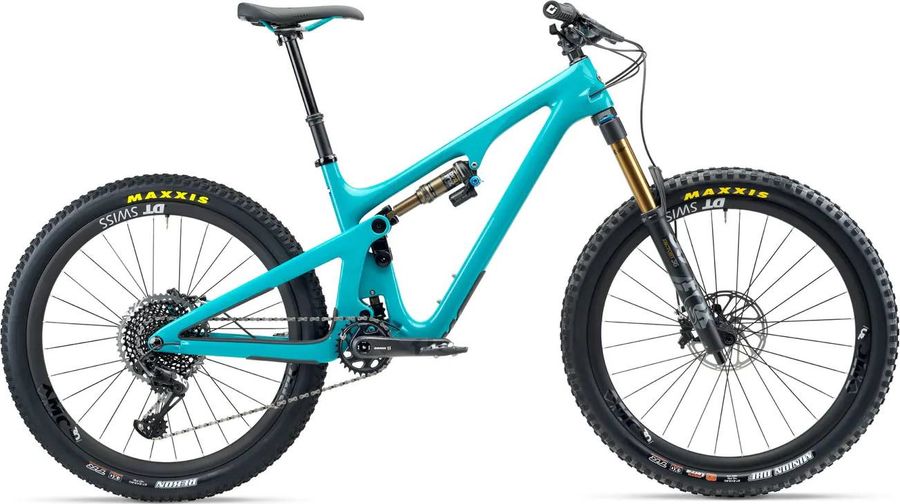

Yeti SB140 — C/Series / C2 2020

About the Yeti SB140 — C/Series / C2 2020

The Yeti SB140 — C/Series / C2 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain. Its features include dropper seatpost, boost 148, and hydraulic disc brakes. The bike weighs approximately 13,65 kg.

Features

The Yeti SB140 — C/Series / C2 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
ODI ELITE PRO
Components
Steam
RACE FACE RIDE 35X50MM
Saddle
WTB VOLT CUSTOM
Headset
CANE CREEK 40 INTEGRATED
Seatpost
FOX TRANSFER 31.6MM / XS-SM: 125MM, MD: 150MM, LG-XL: 175MM
Handlebar
RACE FACE AEFFECT R 35X780MM
Discs
SRAM CENTERLINE 180/180
Brakes
SRAM G2 RSC Hydraulic 248 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black
Model
DB-G2-RSC-A1
Name
G2 RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Weight
248
Drivetrain
Crankset
SRAM X1 EAGLE 30T 170MM
Shifter
SRAM GX EAGLE
Bottom bracket
SRAM DUB BB92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
C/Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
Rear suspension
Fox DPX2 Performance
Front suspension
Fox 36 Performance
Wheels
Rims
DT SWISS M1700 30MM
Tires
MAXXIS MINION DHF 2.6 EXO

Geometry

Size XS SM MD LG XL
a
Seat tube length
355,0
380,0
410,0
450,0
495,0
b
Seat tube angle
77,1º
77,0º
77,0º
77,0º
76,9º
c
Top tube length
544,2
573,0
604,5
627,5
655,4
d
Head tube length
95,5
109,9
115,4
126,4
137,5
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
65,0º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1150,8
1181,9
1214,2
1238,9
1268,6
i
Chainstay length
439,0
439,0
439,0
439,0
439,0
j
Bottom bracket drop
16,0
16,0
16,0
16,0
16,0
k
Stack height
587,9
600,9
605,9
615,9
625,9
l
Reach
411,1
436,1
466,1
486,1
511,1
m
Standover height
708,4
713,6
716,0
718,3
720,7
x
Bottom bracket height
339,9
339,9
339,9
339,9
339,9
y
Front center
711,8
742,9
775,2
799,9
829,6
