Yeti SB165 — C/Series / C2 2020

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,78 kg
Front travel
180mm
Rear travel
165mm

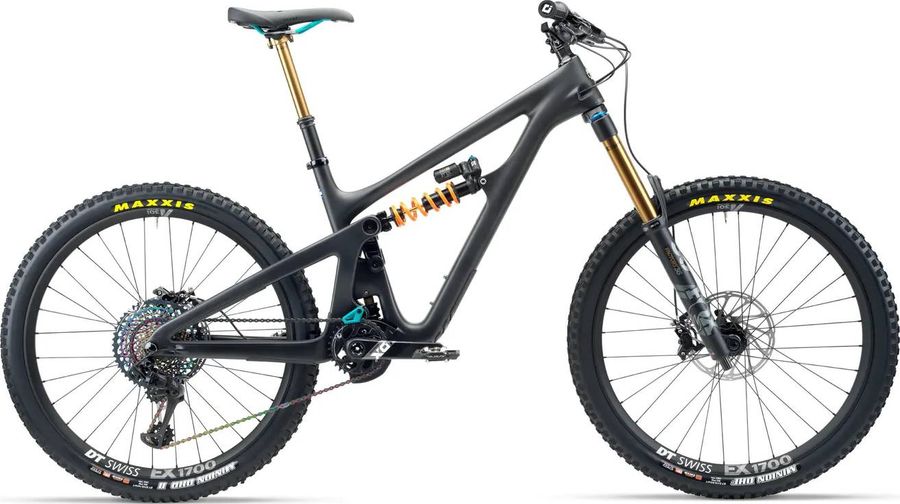

Yeti SB165 — C/Series / C2 2020

About the Yeti SB165 — C/Series / C2 2020

The Yeti SB165 — C/Series / C2 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain. Its features include dropper seatpost, boost 148, and hydraulic disc brakes. The bike weighs approximately 14,78 kg.

Features

The Yeti SB165 — C/Series / C2 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
ODI ELITE PRO
Components
Steam
RACE FACE RIDE 35X50MM
Saddle
WTB VOLT CUSTOM
Headset
CANE CREEK 40 INTEGRATED
Seatpost
FOX TRANSFER 31.6MM / SM: 125MM, MD: 150MM, LG-XL: 175MM
Handlebar
RACE FACE AEFFECT R 35X780MM
Discs
SRAM CENTERLINE 200/200
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM X1 EAGLE 30T 170MM
Shifter
SRAM GX EAGLE
Bottom bracket
SRAM DUB BB92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
C/Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
Rear suspension
Fox Van Performance
Front suspension
Fox 36 Performance
Wheels
Rims
DT SWISS CUSTOM EX1700 30MM
Tires
MAXXIS MINION DHF 2.5 EXO+

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
410,0
450,0
495,0
b
Seat tube angle
77,0º
77,0º
77,0º
77,0º
c
Top tube length
564,0
595,5
618,5
646,4
d
Head tube length
104,8
110,4
121,6
132,8
e
Head tube angle
63,5º
63,5º
63,5º
63,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1194,7
1227,2
1252,2
1282,2
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
11,0
11,0
11,0
11,0
k
Stack height
591,9
596,9
606,9
616,9
l
Reach
427,1
457,1
477,1
502,1
m
Standover height
707,4
713,3
720,4
743,7
x
Bottom bracket height
344,9
344,9
344,9
344,9
y
Front center
764,7
797,2
822,2
852,2
