Yeti SB5.5 Carbon XT/SLX 2018

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,98 kg
Front travel
160mm
Rear travel
140mm

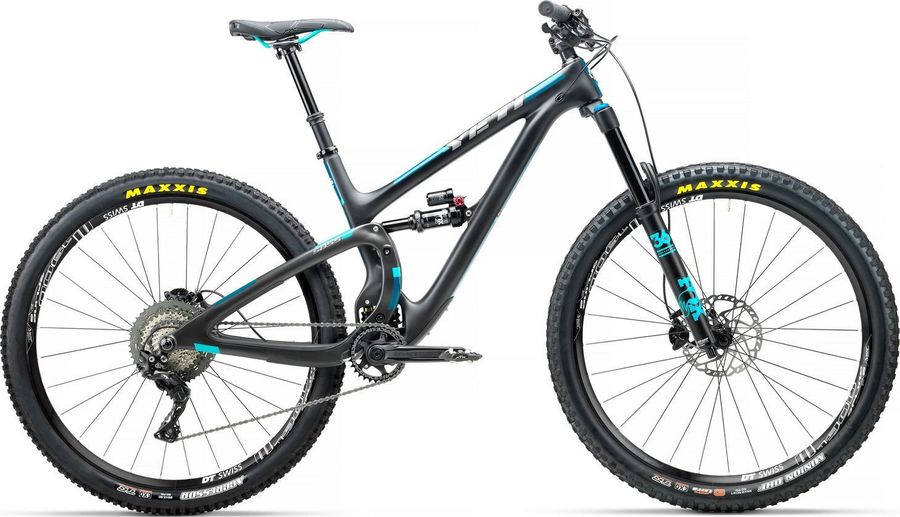

Yeti SB5.5 Carbon XT/SLX 2018

About the Yeti SB5.5 Carbon XT/SLX 2018

The Yeti SB5.5 Carbon XT/SLX 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 13,98 kg.

Features

The Yeti SB5.5 Carbon XT/SLX 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA2
Components
Steam
Race Face Respond, 45mm length
Saddle
WTB Custom
Headset
Cane Creek 40 Inset Taper
Seatpost
FOX Transfer
Handlebar
Race Face Respond, 785mm width
Brake lever
Shimano SLX
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
Race Face Aeffect
Shifter
Shimano SLX
Bottom bracket
Race Face BB92
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Carbon Fiber
Rear suspension
Fox DPX2 Performance
Front suspension
Fox 36 Performance
Wheels
Rims
DT Swiss M1900, 30mm
Tires
Front: Maxxis Minion DHF, 29" x 2.5", Rear: Maxxis Aggressor, 29" x 2.3"
Rear hub
DT Swiss
Front hub
DT Swiss

Geometry

Size MD LG XL
a
Seat tube length
445,0
483,0
521,0
b
Seat tube angle
73,6º
73,6º
73,6º
c
Top tube length
595,0
620,0
646,0
d
Head tube length
90,0
105,0
121,0
e
Head tube angle
66,5º
66,5º
66,5º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1162,0
1189,0
1216,0
i
Chainstay length
431,0
431,0
431,0
j
Bottom bracket drop
28,0
28,0
28,0
k
Stack height
604,0
618,0
633,0
l
Reach
415,0
436,0
457,0
m
Standover height
737,0
749,0
761,0
x
Bottom bracket height
346,0
346,0
346,0
y
Front center
-
-
-
