Yeti SB5 Beti TURQ XX1 Eagle 2018

MTB Trail
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,98 kg
Front travel
150mm
Rear travel
127mm

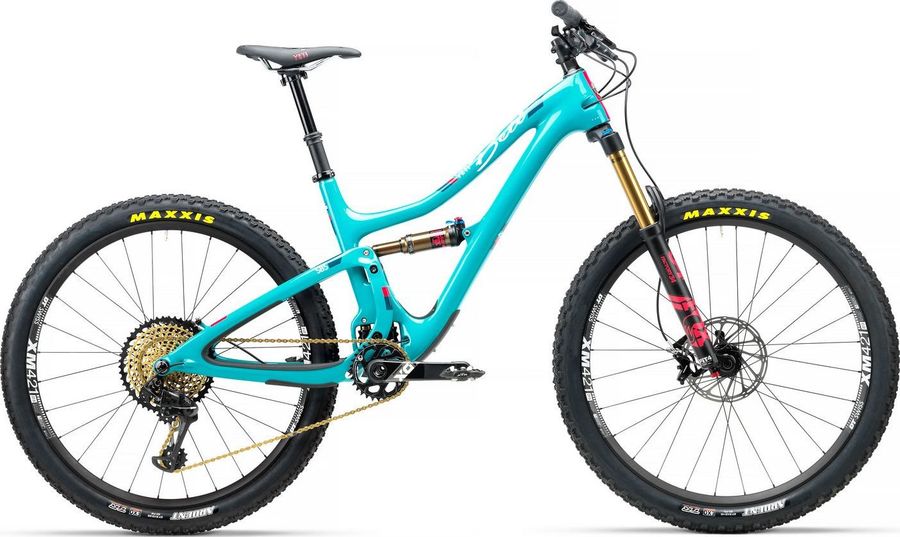

Yeti SB5 Beti TURQ XX1 Eagle 2018

About the Yeti SB5 Beti TURQ XX1 Eagle 2018

The Yeti SB5 Beti TURQ XX1 Eagle 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 12,98 kg.

Features

The Yeti SB5 Beti TURQ XX1 Eagle 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA2
Components
Steam
Race Face Turbine Basic, 50mm length, 31.8mm clamp
Saddle
WTB Deva
Headset
Chris King Inset Taper
Seatpost
FOX Transfer
Handlebar
Yeti Carbon, 740mm width, 31.8mm clamp
Brake lever
SRAM Guide RSC
Brakes
SRAM Guide RSC Hydraulic 377 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Silver
Model
DB-GDE-RSC-B1
Name
Guide RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
377
Drivetrain
Crankset
SRAM X01 Carbon Eagle, 170mm length
Shifter
SRAM XX1 Eagle, 12-speed
Bottom bracket
SRAM GXP BB92
Front derailleur
N/A (1x-specific)
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle Gold
Frameset
Frame
Carbon Fiber
Front suspension
Fox 34 Factory
Rear suspension
Fox Float DPS Factory
Wheels
Rims
DT Swiss XM421
Tires
Maxxis Ardent, EXO TR, 27.5" x 2.4" (front), 27.5" x 2.25" (rear)
Rear hub
DT Swiss 350
Front hub
DT Swiss 350

Geometry

Size XS SM MD LG
a
Seat tube length
381,0
419,0
445,0
483,0
b
Seat tube angle
73,7º
73,7º
73,6º
73,5º
c
Top tube length
550,0
576,0
601,0
627,0
d
Head tube length
100,0
116,0
127,0
144,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1114,0
1140,0
1166,0
1193,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
17,0
17,0
17,0
17,0
k
Stack height
583,0
598,0
608,0
623,0
l
Reach
380,0
400,0
422,0
442,0
m
Standover height
666,0
681,0
722,0
735,0
x
Bottom bracket height
338,0
338,0
338,0
338,0
y
Front center
-
-
-
-
