Yeti SB5+ Carbon GX Eagle 2018

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,61 kg
Front travel
150mm
Rear travel
127mm

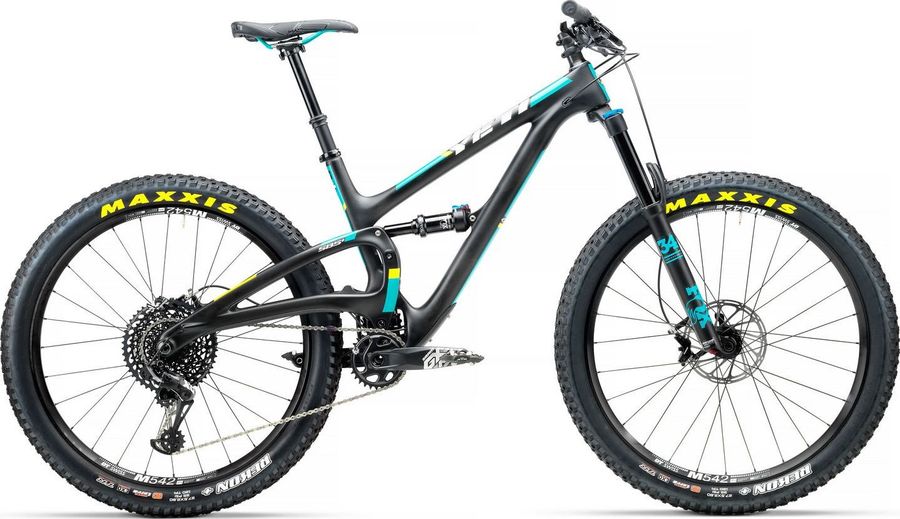

Yeti SB5+ Carbon GX Eagle 2018

About the Yeti SB5+ Carbon GX Eagle 2018

The Yeti SB5+ Carbon GX Eagle 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 13,61 kg.

Features

The Yeti SB5+ Carbon GX Eagle 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA2
Components
Steam
Race Face Ride, 60mm length
Saddle
WTB Custom
Headset
Cane Creek 40 Inset Taper
Seatpost
FOX Transfer
Handlebar
Race Face Evolve, 750mm width
Brake lever
SRAM Guide R
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
SRAM GX Eagle
Shifter
SRAM GX Eagle, 12-speed
Bottom bracket
SRAM GXP BB92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 34 Performance
Wheels
Rims
DT Swiss XM551
Tires
Maxxis Rekon, EXO TR, 27.5" x 2.8"
Rear hub
DT Swiss 370
Front hub
DT Swiss 370

Geometry

Size MD LG XL
a
Seat tube length
445,0
483,0
521,0
b
Seat tube angle
74,1º
74,1º
74,1º
c
Top tube length
593,0
619,0
644,0
d
Head tube length
90,0
105,0
121,0
e
Head tube angle
67,1º
67,1º
67,1º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1157,0
1184,0
1212,0
i
Chainstay length
431,0
431,0
431,0
j
Bottom bracket drop
24,0
24,0
24,0
k
Stack height
600,0
614,0
628,0
l
Reach
420,0
442,0
463,0
m
Standover height
720,0
732,0
745,0
x
Bottom bracket height
331,0
331,0
331,0
y
Front center
-
-
-
