Yeti SB5 — C/Series / GX 2020

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,86 kg
Front travel
150mm
Rear travel
127mm

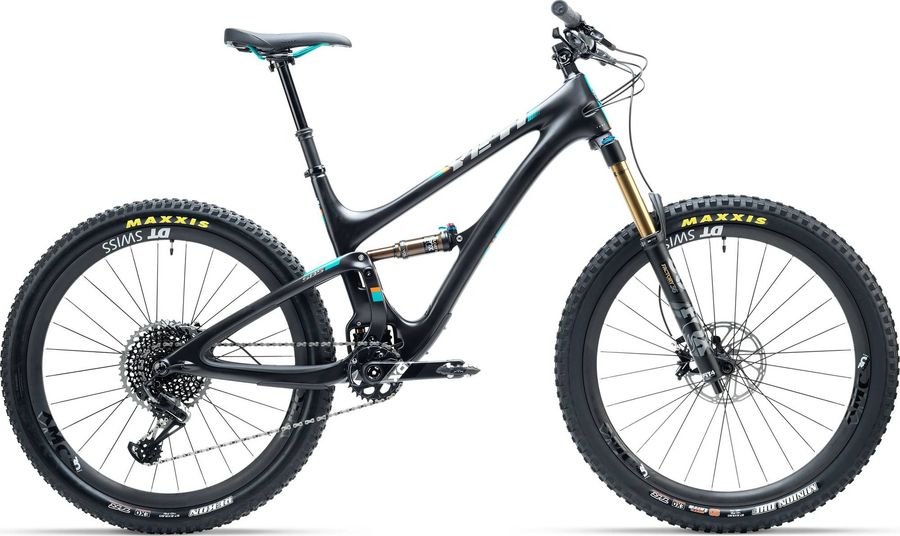

Yeti SB5 — C/Series / GX 2020

About the Yeti SB5 — C/Series / GX 2020

The Yeti SB5 — C/Series / GX 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain. Its features include internal routing, dropper seatpost, and boost 148. The bike weighs approximately 12,86 kg.

Features

The Yeti SB5 — C/Series / GX 2020 has 4 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
ERGON GE1
Components
Steam
RACE FACE RIDE 35X50MM
Saddle
WTB CUSTOM VOLT
Headset
CANE CREEK 40 INSET
Seatpost
FOX TRANSFER 30.9MM / XS-S: 100MM, MD: 125MM, L-XL: 150MM
Handlebar
RACE FACE AEFFECT R 35X780MM
Discs
SRAM CENTERLINE 180mm
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
SRAM GX EAGLE 30T
Shifter
SRAM GX EAGLE
Bottom bracket
SRAM DUB BB92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
C/Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
Front suspension
Fox 36 Performance
Rear suspension
Fox Float DPS Performance
Wheels
Rims
DT SWISS M1900 30MM
Tires
MAXXIS MINION DHF 2.6

Geometry

Size SM MD LG XL XS
a
Seat tube length
381,0
419,1
444,5
482,6
520,7
b
Seat tube angle
73,7º
73,7º
73,6º
73,5º
73,5º
c
Top tube length
550,5
575,9
601,3
626,7
652,1
d
Head tube length
100,0
116,0
127,0
144,0
165,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1113,6
1140,2
1166,2
1193,0
1220,5
i
Chainstay length
434,9
434,9
434,9
434,9
434,9
j
Bottom bracket drop
18,0
18,0
18,0
18,0
18,0
k
Stack height
582,9
597,6
607,7
623,3
642,5
l
Reach
379,9
400,1
421,7
441,8
460,9
m
Standover height
666,0
681,3
721,9
734,6
747,3
x
Bottom bracket height
337,8
337,8
337,8
337,8
337,8
y
Front center
678,7
705,3
731,3
758,2
785,6
