Yeti SB6 TURQ X01 Eagle 2018

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,39 kg
Front travel
160mm
Rear travel
152mm

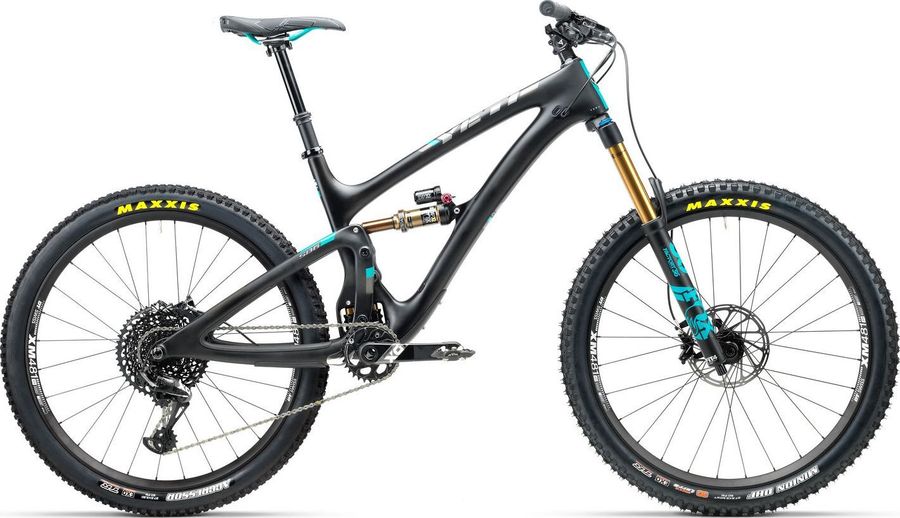

Yeti SB6 TURQ X01 Eagle 2018

About the Yeti SB6 TURQ X01 Eagle 2018

The Yeti SB6 TURQ X01 Eagle 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 13,39 kg.

Features

The Yeti SB6 TURQ X01 Eagle 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA2
Components
Steam
Race Face Turbine Basic, 50mm length, 35mm clamp
Saddle
WTB Custom
Headset
Cane Creek 40 Inset Taper
Seatpost
FOX Transfer
Handlebar
Yeti Carbon, 800mm width, 35mm clamp
Brake lever
SRAM Guide RSC
Brakes
SRAM Guide RSC Hydraulic 377 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Silver
Model
DB-GDE-RSC-B1
Name
Guide RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
377
Drivetrain
Chain
SRAM Eagle, 12-speed
Crankset
SRAM X01 Carbon Eagle
Shifter
SRAM X01 Eagle, 12-speed
Bottom bracket
SRAM GXP BB92
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
DT Swiss XM481
Tires
Front: Maxxis Minion DHF, 27.5" x 2.5", Rear: Maxxis Aggressor, 27.5" x 2.3"
Rear hub
DT Swiss 350
Front hub
DT Swiss 350

Geometry

Size XS SM MD LG XL
a
Seat tube length
381,0
419,0
445,0
483,0
521,0
b
Seat tube angle
73,5º
73,4º
73,3º
73,2º
73,2º
c
Top tube length
552,0
578,0
604,0
630,0
656,0
d
Head tube length
94,0
110,0
121,0
138,0
160,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
65,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1132,0
1159,0
1186,0
1213,0
1241,0
i
Chainstay length
440,0
440,0
440,0
440,0
440,0
j
Bottom bracket drop
10,0
10,0
10,0
10,0
10,0
k
Stack height
573,0
588,0
598,0
613,0
633,0
l
Reach
382,0
402,0
424,0
445,0
464,0
m
Standover height
752,0
755,0
757,0
757,0
757,0
x
Bottom bracket height
345,0
345,0
345,0
345,0
345,0
y
Front center
-
-
-
-
-
