YT CAPRA Comp 2020

MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,1 kg
Front travel
180mm
Rear travel
180mm

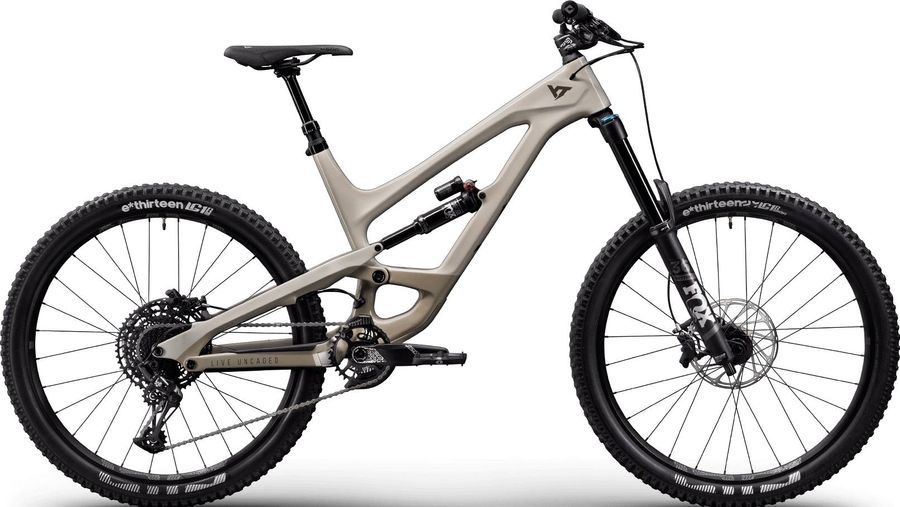

YT CAPRA Comp 2020

About the YT CAPRA Comp 2020

The YT CAPRA Comp 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,1 kg.

Features

The YT CAPRA Comp 2020 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
ODI Elite Motion V 2.1 Lock- On
Pedals
included / inklusive The included pedals were not made for demanding trails or racing. That is why we also offer you quality pedals at an attractive price in the shopping cart.
Components
Steam
E13 Base 50 mm
Saddle
SDG RDR MNT YT Custom
Headset
Acros AZX-576 High Cap
Seatpost
YT Postman 31.6 mm | S - M 125 mm drop / L 150 mm drop / XL - XXL 170 mm drop
Handlebar
E13 Base 35 mm Rise | 800 mm Width
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM Descendant 6K 170 mm | 32 T | DUB
Shifter
SRAM NX Eagle 12- Speed
Chain guide
E13 TRS Plus I05 | 28- 34 T | Compact Slider
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
CAPRA CARBON 27,5 high modular carbonfiber frame, V4L Virtual 4-Link rear suspension, 148x12mm DT Swiss QR Thru axle, down tube/seat stay/chain stay protection
Front suspension
Fox 36 Rhythm
Rear suspension
Fox Float DPX2 Performance
Wheels
Rims
E13 LG1 EN 27.5" x 30 mm | 110 x 15 mm | 148 x 12 mm
Tires
E13 LG1 Race 27.5" x 2.4 | Gen3 | Race

Geometry

Size SM MD LG XL XXL
a
Seat tube length
400,0
420,0
450,0
470,0
490,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
75,0º
c
Top tube length
572,0
594,0
617,0
639,0
661,0
d
Head tube length
97,0
109,0
120,0
130,0
135,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
65,0º
f
Rake
48,0
48,0
48,0
48,0
49,0
g
Trail
113,0
113,0
113,0
113,0
112,0
h
Wheelbase
1169,0
1194,0
1219,0
1248,0
1271,0
i
Chainstay length
427,0
427,0
427,0
432,0
432,0
j
Bottom bracket drop
8,0
8,0
8,0
8,0
8,0
k
Stack height
597,0
607,0
617,0
626,0
631,0
l
Reach
415,0
435,0
455,0
475,0
495,0
m
Standover height
678,0
690,0
703,0
719,0
725,0
x
Bottom bracket height
350,0
350,0
350,0
350,0
350,0
y
Front center
742,0
767,0
792,0
816,0
839,0
