YT CAPRA Comp 29 2021

MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
14,6 kg
Front travel
170mm
Rear travel
170mm

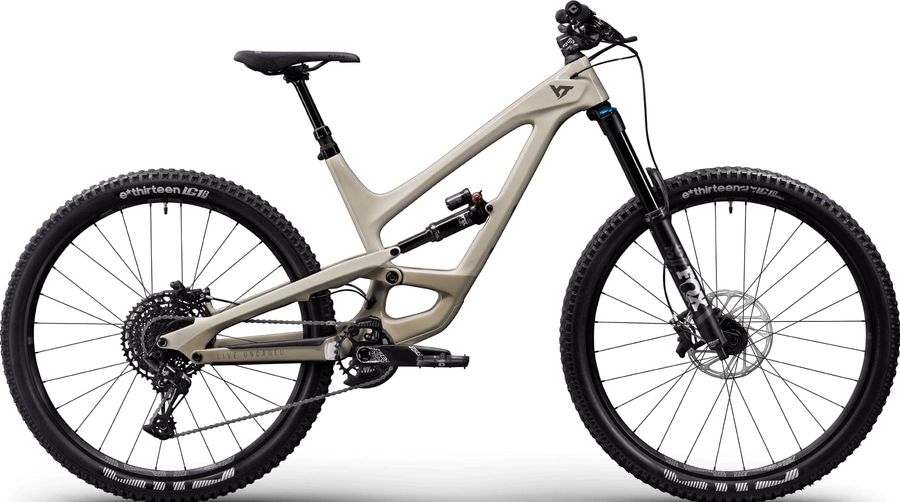

YT CAPRA Comp 29 2021

About the YT CAPRA Comp 29 2021

The YT CAPRA Comp 29 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,6 kg.

Features

The YT CAPRA Comp 29 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
ODI Elite Motion V 2.1 Lock- On
Pedals
included / inklusive The included pedals were not made for demanding trails or racing. That is why we also offer you quality pedals at an attractive price in the shopping cart.
Components
Steam
E13 Base 50 mm
Saddle
SDG RDR MNT YT Custom
Headset
Acros AZX-576 High Cap
Seatpost
YT Postman 31.6 mm | M 125 mm drop / L 150 mm drop / XL - XXL 170 mm drop
Handlebar
E13 Base 35 mm Rise | 780 mm Width
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM Descendant 6K 170 mm | 32 T | DUB
Shifter
SRAM NX Eagle 12- Speed
Chain guide
E13 TRS Plus I05 | 28- 34 T | Compact Slider
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
CAPRA CARBON 29" high modular carbonfiber frame, V4L Virtual 4-Link rear suspension, 148x12mm DT Swiss QR Thru axle, down tube/seat stay/chain stay protection
Rear suspension
Fox Float DPX2 Performance
Front suspension
Fox 36 Float Rhythm
Wheels
Rims
E13 LG1 EN 29" x 30 mm | 110 x 15 mm | 148 x 12 mm
Tires
E13 LG1 Race 29" x 2.4 | Gen3 | Race

Geometry

Size MD LG XL XXL
a
Seat tube length
420,0
445,0
465,0
490,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
587,0
624,0
648,0
670,0
d
Head tube length
95,0
105,0
115,0
120,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
124,0
124,0
124,0
124,0
h
Wheelbase
1206,0
1230,0
1259,0
1282,0
i
Chainstay length
438,0
438,0
443,0
443,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
k
Stack height
624,0
633,0
642,0
647,0
l
Reach
443,0
463,0
483,0
503,0
m
Standover height
702,0
726,0
738,0
748,0
x
Bottom bracket height
351,0
351,0
351,0
351,0
y
Front center
769,0
793,0
817,0
840,0
