YT Capra CORE 3 MX 2021

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29" / 27,5"
Suspension type
Full suspension
Weight
15 kg
Front travel
170mm
Rear travel
165mm

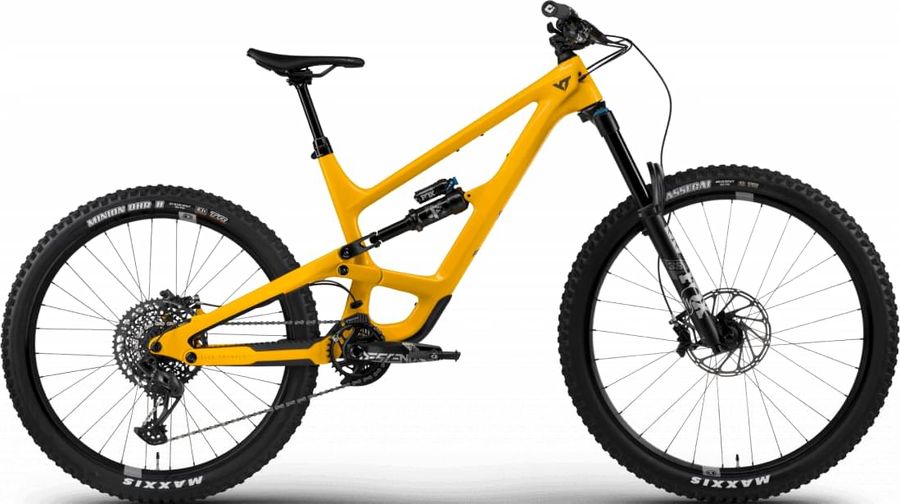

YT Capra CORE 3 MX 2021

About the YT Capra CORE 3 MX 2021

The YT Capra CORE 3 MX 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 15 kg.

Features

The YT Capra CORE 3 MX 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ODI ELITE MOTION V2.1, Lock On
Components
Steam
E13 PLUS 35, Length 50 mm | 35 mm Clamp | Rise 0°
Saddle
SDG BEL AIR 3.0, YT Custom | Width 140 mm I Lux-Alloy Rail
Headset
ACROS AZX-576, High Cap
Seatpost
YT POSTMAN, Ø 31.6 mm | 100 mm Drop (Frame Size S) |125 mm Drop (Frame Size M) | 150 mm Drop (Frame Size L) | 170 mm Drop (Frame Size XL-XXL) | MMX-Remote
Handlebar
E13 PLUS 35, Width 800 mm | Rise 20 mm ( Frame Size S-M) I Rise 35 mm (Frame Size L-XXL) | 9° Back Sweep | 5° Up Sweep
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM DESCENDANT 7K, Crank Arm Length 170 mm | 32T | DUB
Shifter
12-speed, SRAM GX EAGLE
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon
Rear suspension
Fox Float X Performance
Front suspension
Fox 38 Float Performance Elite
Wheels
Rims
CRANKBROTHERS SYNTHESIS ENDURO ALLOY, Front: Aluminum Rim 29“ | Inner Width 31,5 mm | Front Hub 110 x 15 mm | Rear: Aluminum Rim 27,5“ | Inner Width 29,5 mm | Rear Hub 148 x 12 mm | Freehub XD
Tires
FRONT: MAXXIS ASSEGAI I REAR: MAXXIS MINION DHR II, Front: Tire Size 29“ x 2.5 WT | EXO Casing | Dual Compound | Tubeless Ready Rear: Tire Size 27,5“ x 2.4 WT | EXO Casing | Dual Compound | Tubeless Ready

Geometry

Size SM MD LG XL XXL
a
Seat tube length
395,0
420,0
445,0
470,0
495,0
b
Seat tube angle
75,5º
75,4º
75,4º
77,4º
77,3º
c
Top tube length
559,0
582,0
602,0
625,0
648,0
d
Head tube length
100,0
110,0
110,0
120,0
130,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
64,0º
f
Rake
47,0
46,0
46,0
46,0
46,0
g
Trail
130,0
131,0
131,0
131,0
131,0
h
Wheelbase
1194,0
1218,0
1238,0
1267,0
1292,0
i
Chainstay length
428,0
428,0
428,0
433,0
433,0
j
Bottom bracket drop
30,0
30,0
30,0
30,0
30,0
k
Stack height
622,0
631,0
631,0
640,0
649,0
l
Reach
419,0
439,0
459,0
479,0
499,0
m
Standover height
738,0
730,0
728,0
739,0
736,0
x
Bottom bracket height
346,0
346,0
346,0
346,0
346,0
y
Front center
768,0
792,0
812,0
836,0
861,0
