YT DECOY Base 29 2021

E-Bike
MTB Trail
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
22,9 kg
Front travel
150mm
Rear travel
145mm

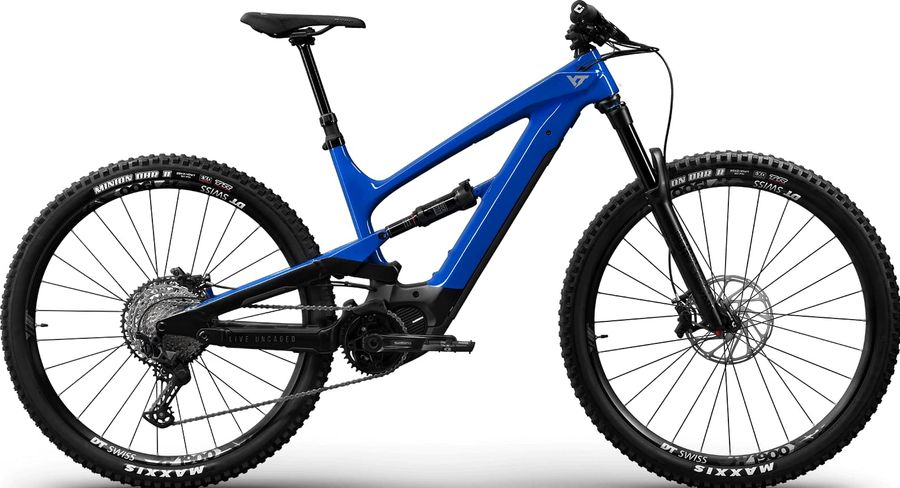

YT DECOY Base 29 2021

About the YT DECOY Base 29 2021

The YT DECOY Base 29 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain. Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 22,9 kg.

Features

The YT DECOY Base 29 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
ODI Elite Motion V 2.1 Lock- On
Pedals
included / inklusive The included pedals were not made for demanding trails or racing. That is why we also offer you quality pedals at an attractive price in the shopping cart.
Remote
Shimano E7000 Monochrome
Components
Steam
Race Face Aeffect R35 40mm
Saddle
SDG RDR MNT YT Custom
Battery
SMP YT Custom Removable | 540Wh | 36V
Headset
Acros AZX-260 Block Lock High Cap
Seatpost
YT Postman 31.6 mm | S - M 125 mm drop / L 150 mm drop / XL - XXL 170 mm drop
Handlebar
Race Face AEFFECT R 780 mm Width | 20 mm Rise | 35 mm Clamp
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Shimano FCE8000 | 165mm
Motor
Shimano E8000 70 NM | 250 W
Shifter
Shimano SLX 12- Speed | Rapidfire Plus
Chain guide
e*thirteen e*spec Plus 2 Bolt | 34-38T | Compact Slider
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
DECOY Carbon CARBONFIBER FRAME WITH ALLOY REAR TRIANGLE | V4L VIRTUAL 4-LINK REAR SUSPENSION WITH 145MM OF TRAVEL | 148X12MM DT SWISS QR THRU AXLE | SEAT STAY/CHAIN STAY PROTECTION
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Wheels
Rims
DT Swiss H 1900 Spline 29" x 30 mm | 110 x 15 m | 148 x 12 mm
Tires
MAXXIS Minion DHR II Dual Compound 29" x 2.4 | EXO | TR

Geometry

Size SM MD LG XL XXL
a
Seat tube length
400,0
420,0
445,0
470,0
495,0
b
Seat tube angle
77,0º
77,0º
77,0º
77,0º
77,0º
c
Top tube length
565,0
587,0
608,0
631,0
654,0
d
Head tube length
95,0
100,0
105,0
115,0
125,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
65,5º
f
Rake
44,0
44,0
45,0
44,0
44,0
g
Trail
122,0
122,0
121,0
122,0
122,0
h
Wheelbase
1190,0
1213,0
1235,0
1259,0
1283,0
i
Chainstay length
458,0
458,0
458,0
458,0
458,0
j
Bottom bracket drop
37,0
37,0
37,0
37,0
37,0
k
Stack height
615,0
620,0
624,0
633,0
642,0
l
Reach
422,0
442,0
462,0
482,0
502,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
339,0
339,0
339,0
339,0
339,0
y
Front center
734,0
757,0
779,0
803,0
827,0
