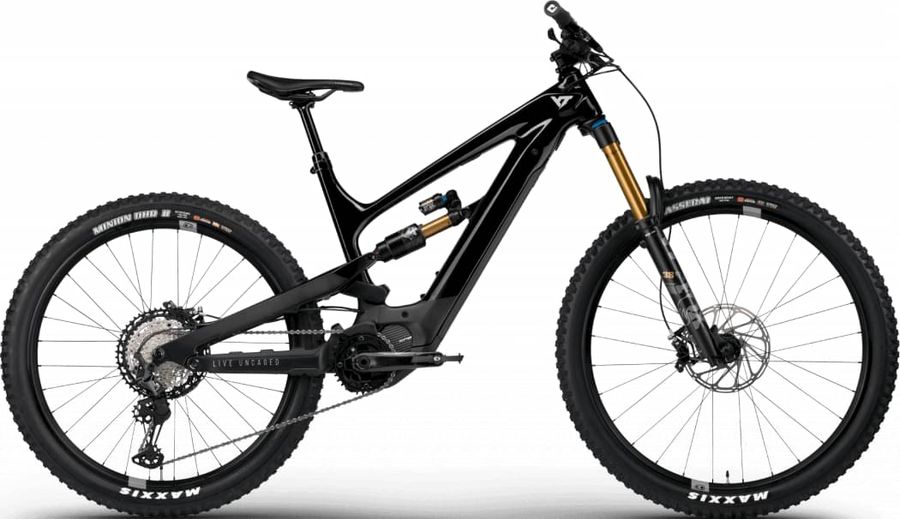

YT Decoy CORE 4 MX 2021
The YT Decoy CORE 4 MX 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29" / 27,5"
Suspension type
Full suspension
Weight
21,7 kg
Front travel
170mm
Rear travel
165mm
About the YT Decoy CORE 4 MX 2021
The YT Decoy CORE 4 MX 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 21,7 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
ODI ELITE MOTION V2.1, Lock On
|
|---|---|
|
Remote
|
SHIMANO E7000, Monochrome I 35 mm
|
|
Steam
|
RENTHAL APEX 35, Length 50 mm | 35 mm Clamp | Rise +/-6°
|
|---|---|
|
Saddle
|
SDG BEL Air 3.0, YT Custom | Width 140 mm I Lux-Alloy Rail
|
|
Battery
|
SMP YT CUSTOM, Removable | 540 Wh Capacity | 36 V
|
|
Headset
|
ACROS AZX-260, Block Lock I High Cap I 2 Spacer 5 mm I Flatcapset
|
|
Seatpost
|
YT POSTMAN, Ø 31.6 mm | 125 mm Drop (Frame Size S-M) | 150 mm Drop (Frame Size L) | 170 mm Drop (Frame Size XL-XXL) | MMX-Remote
|
|
Handlebar
|
RENTHAL FATBAR 35, Rise 30 mm | Width 800 mm | 7° Back Sweep | 5° Up Sweep
|
|
Brakes
|
SRAM Code RSC
Hydraulic
|
|
|
|
|
Crankset
|
SHIMANO XT, M8150 | Crank Arm Length 160 mm | HOLLOWTEC
|
|---|---|
|
Motor
|
SHIMANO EP8, Torque 85 NM | Power 250 W I E-TUBE PROJECT APP
|
|
Shifter
|
SHIMANO XT, M8100 | 12-speed I 2-Way-Release
|
|
Chain guide
|
E13 e*SPEC Plus, 2 Bolt | 34-38T | Compact Slider
|
|
Bottom bracket
|
BSA, 73mm, threaded
|
|
Rear derailleur
|
Shimano Deore XT RD-M8100
284 g
SGS
12s
|
|
|
|
|
Cassette
|
Shimano Deore XT CS-M8100-12
HYPERGLIDE+
|
|
10-51T 10-51T: 470g |
|
|
Frame
|
Carbon
|
|---|---|
|
Rear suspension
|
Fox Float X2 Factory
|
|
Front suspension
|
Fox 38 Float Factory Kashima
|
|
Rims
|
CRANKBROTHERS SYNTHESIS ALLOY E-MTB I9 1/1, Front: Aluminum Rim 29“ | Inner Width 31,5 mm | Front Hub 110 x 15 mm | Rear: Aluminum Rim 27,5“ | Inner Width 31,5 mm | Rear Hub 148 x 12 mm | Freehub I9 1/1 Microspline
|
|---|---|
|
Tires
|
FRONT: MAXXIS ASSEGAI | REAR: MAXXIS MINION DHR II, Front: Tire Size 29“ x 2.5 WT | EXO Casing | 3C MaxxTerra Compound | Tubeless Ready Rear: Tire Size 27,5“ x 2.6 WT | EXO+ Casing | 3C MaxxTerra Compound | Tubeless Ready
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
420,0
|
445,0
|
470,0
|
495,0
|
|
b
Seat tube angle
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
|
c
Top tube length
|
569,0
|
591,0
|
612,0
|
635,0
|
658,0
|
|
d
Head tube length
|
95,0
|
100,0
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
64,5º
|
64,5º
|
64,5º
|
64,5º
|
64,5º
|
|
f
Rake
|
53,0
|
53,0
|
53,0
|
52,0
|
53,0
|
|
g
Trail
|
120,0
|
120,0
|
120,0
|
121,0
|
120,0
|
|
h
Wheelbase
|
1191,0
|
1213,0
|
1235,0
|
1259,0
|
1284,0
|
|
i
Chainstay length
|
442,0
|
442,0
|
442,0
|
442,0
|
442,0
|
|
j
Bottom bracket drop
|
32,0
|
32,0
|
32,0
|
32,0
|
32,0
|
|
k
Stack height
|
624,0
|
629,0
|
633,0
|
643,0
|
652,0
|
|
l
Reach
|
409,0
|
429,0
|
449,0
|
469,0
|
489,0
|
|
m
Standover height
|
752,0
|
738,0
|
724,0
|
714,0
|
702,0
|
|
x
Bottom bracket height
|
344,0
|
344,0
|
344,0
|
344,0
|
344,0
|
|
y
Front center
|
751,0
|
773,0
|
795,0
|
819,0
|
844,0
|
