YT DECOY Shred 2020

E-Bike
MTB Enduro
Groupset
Shimano XT
Wheel size
29" / 27,5"
Suspension type
Full suspension
Weight
24,3 kg
Front travel
170mm
Rear travel
170mm

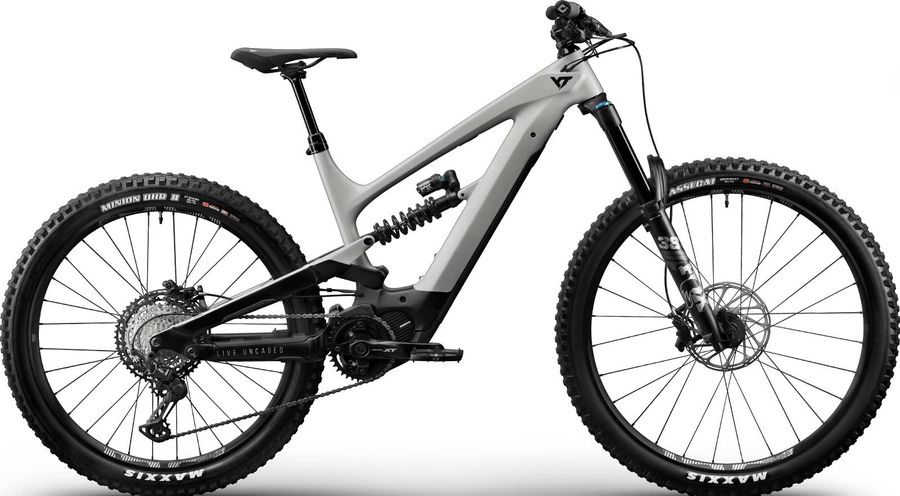

YT DECOY Shred 2020

About the YT DECOY Shred 2020

The YT DECOY Shred 2020 is a Full suspension Enduro Mountain Bike. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 24,3 kg.

Features

The YT DECOY Shred 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
ODI Elite Motion V2.1 Lock-On
Remote
Shimano E7000 Monochrome
Components
Steam
E13 Plus 50 mm LENGTH | 35MM CLAMP | 0 RISE
Saddle
SDG RADAR MNT YT Custom
Battery
SMP YT Custom Removable | 540 Wh | 36 V
Headset
Acros AZX-260 Block Lock High Cap
Seatpost
YT Postman Ø 31.6mm| 125mm (S-M) | 150mm (L) | 170mm (XL-XXL) | HE-Remote
Handlebar
E13 Plus 35 mm Rise | 800 mm Width
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Shimano XT FCM 8050 | 165 mm
Motor
Shimano E8000 70 NM | 250 W
Shifter
Shimano XT 12 - Speed
Chain guide
E13 TRS Plus E8000 2 Bolt | 34-38T | Compact Slider
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Rear suspension
Fox Float DHX2 Performance Elite
Front suspension
Fox 38 Float Performance
Wheels
Rims
E13 e*spec Plus 29“ x 30 mm | 110 x 15 mm | 27,5“ x 35 mm | 148 x 12 mm
Tires
Maxxis Assegai 29“ x 2.50 EXO

Geometry

Size SM MD LG XL XXL
a
Seat tube length
400,0
420,0
445,0
470,0
495,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
75,5º
c
Top tube length
569,0
591,0
612,0
635,0
658,0
d
Head tube length
95,0
100,0
105,0
115,0
125,0
e
Head tube angle
64,5º
64,5º
64,5º
64,5º
64,5º
f
Rake
1,0
37,0
37,0
37,0
37,0
g
Trail
178,0
138,0
138,0
138,0
138,0
h
Wheelbase
1142,0
1204,0
1226,0
1251,0
1275,0
i
Chainstay length
442,0
442,0
442,0
442,0
442,0
j
Bottom bracket drop
17,0
17,0
17,0
17,0
17,0
k
Stack height
623,0
628,0
633,0
642,0
651,0
l
Reach
410,0
430,0
450,0
470,0
490,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
343,0
343,0
343,0
343,0
343,0
y
Front center
701,0
763,0
785,0
810,0
834,0
