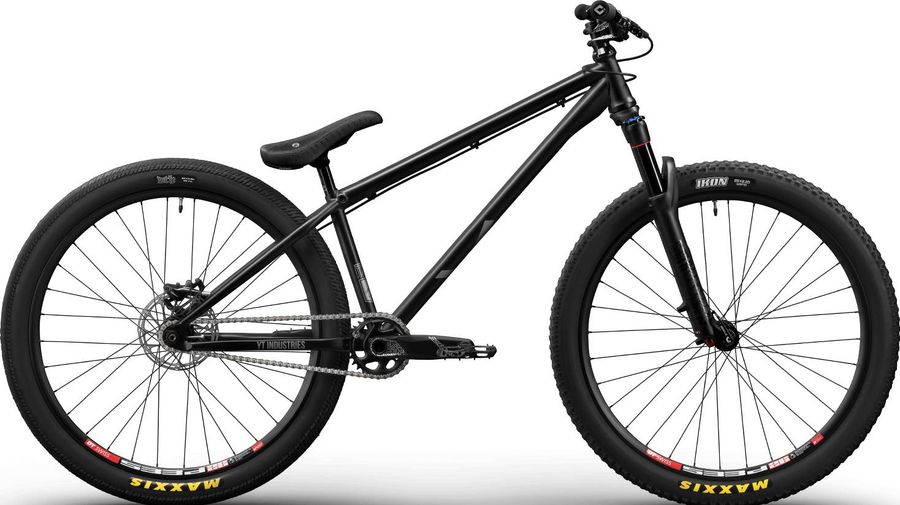

YT DIRT Love 2019

Frame material

Steel

Wheel size

26"

Suspension type

Hardtail

Weight

11 kg

Front travel

100mm

About the YT DIRT Love 2019

The YT DIRT Love 2019 is a Hardtail Mountain Bike with a steel frame. Its features include hydraulic disc brakes. The bike weighs approximately 11 kg.

Features

The YT DIRT Love 2019 has 1 features listed below.

Hydraulic disc brakes More info

Specifications

Acessories
Grip	ODI Elite Motion V2.1 \| Lock On
Pedals	None included

Components
Steam	SRAM Descendant 40mm
Saddle	SDG Pivotal
Headset	ACROS AiX-326 low cap, sealed headset, industrial bearings
Seatpost	SDG PIVOTAL 25.4mm
Handlebar	SRAM Descendant 25mm Rise \| 760mm
Brake lever	SRAM Level TL
Brakes	SRAM Level TL Hydraulic 370 g
Application MTB Blade material Aluminum - Forged Bracket disk brake Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Diffusion Black Anodized, Gloss Black Model DB-LVL-TL-A1 Name Level TL Orientation Front, Rear Pad type disc Steel-backed metal sintered, Steel-backed organic Weight based on Direct Mount, 800mm hose, 160mm CL Rotor (TARGET) Weight 370

Drivetrain
Chain	KMC KMC Half Link Chain
Crankset	SRAM Descendant 6K
Cassette	Single speed
Chain guide	None included
Bottom bracket	SRAM GXP PF30 / 83mm

Frameset
Frame	DIRT LOVE 26" 26" CrMo steel frame
Front suspension	RockShox Pike DJ Solo Air 1839 g
Color Diffusion Black, Gloss Black fork offset 40mm (26") Max tire width (mm) 66 Maximum rotor size 220mm Minimum rotor size 160mm Model FS-PIKE-DJ-A3 Name Pike DJ Spring Solo Air Travel (mm) 100mm, 140mm Upper tube type 35mm tapered wall aluminum Weight based on 140mm, Maxle Ultimate Weight 1839 Wheel size 26"

Wheels
Rims	DT Swiss / YT Division DT Swiss 533D Rim / YT Division Hubs
Tires	Maxxis Ikon 26 x 2,2, compound MPC, carcass 60 tpi
Rear hub	YT Division
Front hub	YT Division

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Report incorrect information

Geometry

Size	REGULAR	Long
a Seat tube length	313,0	313,0
b Seat tube angle	72,0º	72,0º
c Top tube length	579,0	613,0
d Head tube length	111,0	111,0
e Head tube angle	68,5º	68,5º
f Rake	39,0	38,0
g Trail	93,0	94,0
h Wheelbase	1051,0	1085,0
i Chainstay length	398,0	398,0
j Bottom bracket drop	23,0	23,0
k Stack height	559,0	559,0
l Reach	398,0	433,0
m Standover height	633,0	633,0
x Bottom bracket height	316,0	316,0
y Front center	654,0	688,0
