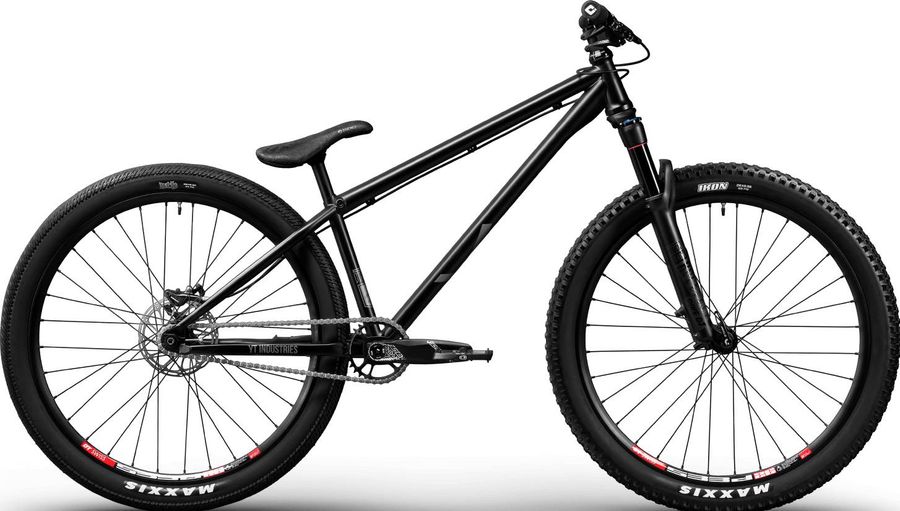

YT DIRT LOVE 2020

Frame material
Steel
Wheel size
26"
Suspension type
Hardtail
Weight
11 kg
Front travel
100mm
YT DIRT LOVE 2020

About the YT DIRT LOVE 2020

The YT DIRT LOVE 2020 is a Hardtail Mountain Bike with a steel frame. Its features include hydraulic disc brakes. The bike weighs approximately 11 kg.

Features

The YT DIRT LOVE 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
ODI Elite Motion V 2.1 Lock- On
Pedals
included / inklusive The included pedals were not made for demanding trails or racing. That is why we also offer you quality pedals at an attractive price in the shopping cart.
Components
Steam
SRAM Descendant 40 mm
Saddle
SDG Apollo Pivotal YT Custom
Headset
Acros AIX-326 High Cap
Seatpost
SDG Pivotal 25.4 mm | 200 mm
Handlebar
SRAM Descendant 35 25 mm Rise | 760 mm Width
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
SRAM Descendant 6K 165 mm | 30 T | DUB
Frameset
Frame
DIRT LOVE 26" 26" CrMo steel frame
Front suspension
RockShox Pike DJ Solo Air 1839 g
Color
Diffusion Black, Gloss Black
fork offset
40mm (26")
Max tire width (mm)
66
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-PIKE-DJ-A3
Name
Pike DJ
Spring
Solo Air
Travel (mm)
100mm, 140mm
Upper tube type
35mm tapered wall aluminum
Weight based on
140mm, Maxle Ultimate
Weight
1839
Wheel size
26"
Wheels
Rims
YT Custom 26"
Tires
MAXXIS IKON 26" x 2.35

Geometry

Size REGULAR Long
a
Seat tube length
313,0
313,0
b
Seat tube angle
72,0º
72,0º
c
Top tube length
579,0
613,0
d
Head tube length
111,0
111,0
e
Head tube angle
68,5º
68,5º
f
Rake
39,0
19,0
g
Trail
93,0
115,0
h
Wheelbase
1051,0
1065,0
i
Chainstay length
398,0
398,0
j
Bottom bracket drop
23,0
23,0
k
Stack height
559,0
559,0
l
Reach
398,0
433,0
m
Standover height
633,0
633,0
x
Bottom bracket height
316,0
316,0
y
Front center
654,0
668,0
