YT IZZO Blaze 2021

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,7 kg
Front travel
140mm
Rear travel
140mm

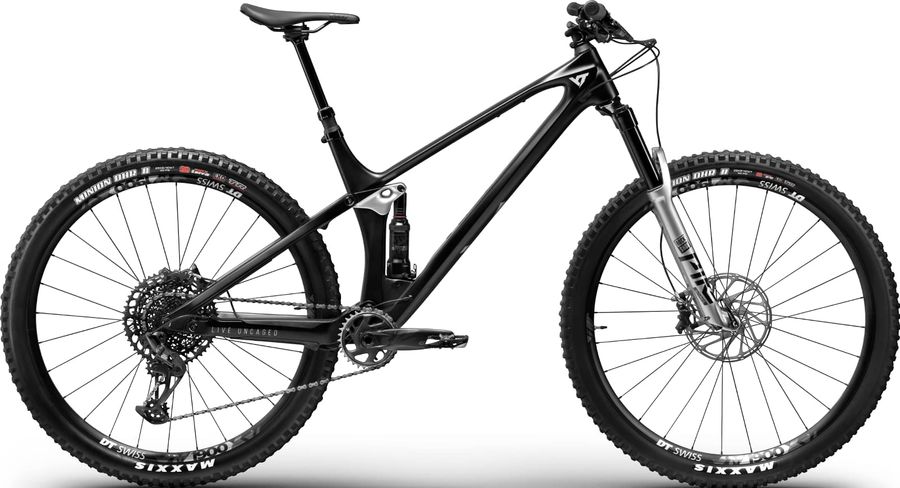

YT IZZO Blaze 2021

About the YT IZZO Blaze 2021

The YT IZZO Blaze 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,7 kg.

Features

The YT IZZO Blaze 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Sensus Lite Lock-On
Pedals
included / inklusive The included pedals were not made for demanding trails or racing. That is why we also offer you quality pedals at an attractive price in the shopping cart.
Components
Steam
Race Face Turbine R 35 S - M 50 mm Length / L - XXL 60 mm | 35 mm clamp
Saddle
SDG BEL AIR 3.0 YT Custom | Lux-Alloy
Headset
Acros AZX S - M AZX - 586 Block Lock | High Cap, L - XXL AZX - 576 | High Cap
Seatpost
YT Postman 31.6 mm | S 100 mm / M 125 mm / L 150 mm / XL - XXL 170 mm | HE-Remote
Handlebar
Race Face Aeffect 20 mm Rise | 780 mm Width
Brakes
SRAM G2 RSC Hydraulic 248 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black
Model
DB-G2-RSC-A1
Name
G2 RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Weight
248
Drivetrain
Crankset
SRAM GX Eagle S 170 mm / M-XL 175 mm | 32T | DUB
Shifter
SRAM GX Eagle 12 - Speed
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon
Rear suspension
RockShox Deluxe Ultimate 340 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-ULT-B2
Name
Deluxe Ultimate
Rebound tune
L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Front suspension
RockShox Pike Ultimate RC2 DebonAir 1832 g
Color
Gloss Black, Gloss Silver
Damper type
Charger 2.1 RC2, Charger 2.1 RCT3
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-PIKE-ULT-B3
Name
Pike Ultimate
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 120mm, RC2 damper, Maxle Stealth
Weight
1832
Wheel size
27.5", 29"
Wheels
Rims
DT Swiss M 1900 SPLINE 29“ x 30 mm | 110 x 15 mm | 148 x 12 mm
Tires
Maxxis Minion DHR II 29“ x 2.40 - 3C Maxx Grip | EXO | TR

Geometry

Size SM MD LG XL XXL
a
Seat tube length
400,0
425,0
450,0
475,0
500,0
b
Seat tube angle
76,5º
76,5º
76,5º
76,5º
76,5º
c
Top tube length
568,0
593,0
618,0
643,0
668,0
d
Head tube length
95,0
105,0
115,0
130,0
140,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
65,5º
f
Rake
50,0
50,0
50,0
49,0
50,0
g
Trail
116,0
116,0
116,0
117,0
116,0
h
Wheelbase
1170,0
1195,0
1221,0
1251,0
1277,0
i
Chainstay length
432,0
432,0
432,0
437,0
437,0
j
Bottom bracket drop
36,0
36,0
36,0
36,0
36,0
k
Stack height
607,0
616,0
625,0
639,0
648,0
l
Reach
424,0
445,0
467,0
487,0
508,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
338,0
338,0
338,0
338,0
338,0
y
Front center
740,0
765,0
791,0
816,0
842,0
