YT IZZO Launch Edition 2020

MTB Trail
Groupset
SRAM X01 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,8 kg
Front travel
130mm
Rear travel
130mm

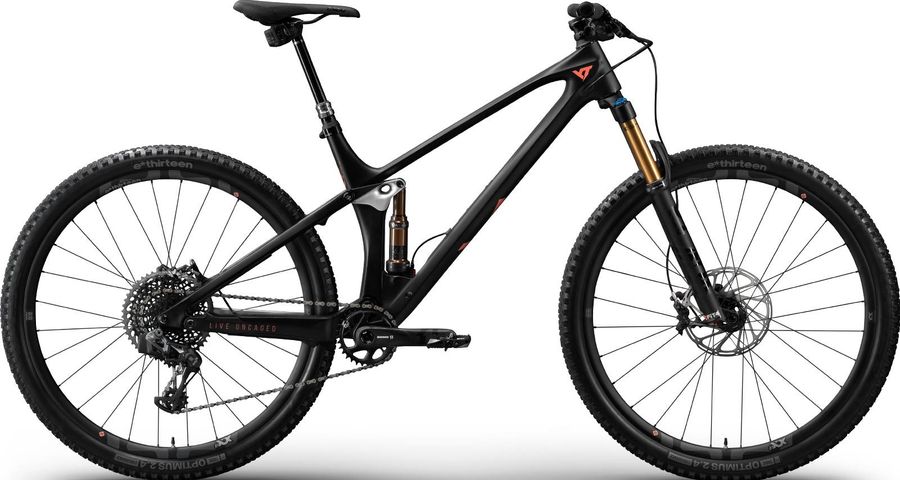

YT IZZO Launch Edition 2020

About the YT IZZO Launch Edition 2020

The YT IZZO Launch Edition 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 11,8 kg.

Features

The YT IZZO Launch Edition 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
RockShox TwistLoc Sprint Remote
Pedals
included / inklusive The included pedals were not made for demanding trails or racing. That is why we also offer you quality pedals at an attractive price in the shopping cart.
Components
Steam
E13 Plus 50 mm Length | 35 mm Clamp | 0 Rise
Saddle
SDG RADAR MNT YT Custom
Headset
Acros AZX S - M AZX - 586 Block Lock | High Cap, L - XXL AZX - 576 | High Cap
Seatpost
SRAM Reverb AXS 31.6 mm | S 100 mm / M 125 mm / L 150 mm / XL - XXL 170 mm
Handlebar
E13 Race Carbon Custom 20 mm Rise | 760 mm Width
Brakes
SRAM G2 Ultimate Hydraulic 238 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized w/Rainbow Hardware, Gloss Black, Gloss Black w/Rainbow Hardware, Lunar Grey
Model
DB-G2-ULT-A1
Name
G2 Ultimate
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Weight
238
Drivetrain
Crankset
SRAM X1 Carbon S 170 mm / M - XL 175 mm | 32T | DUB
Shifter
SRAM Eagle AXS 12 - Speed
Rear derailleur
SRAM X01 Eagle AXS 12s
Cage material
Aluminum
Color
Black, Grey, Lunar, Red
Max tooth
52
Model
RD-X0-1E-A1
Name
X01 Eagle AXS Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Front suspension
Fox 34 Float Factory
Rear suspension
Fox Float DPS Factory
Wheels
Rims
E13 XCX Race Custom 29“ x 28 mm | 110 x x15 mm | 148 x 12 mm
Tires
E13 Trail Casing 29“ x 2.4 | Endurance Compound

Geometry

Size SM MD LG XL XXL
a
Seat tube length
400,0
425,0
450,0
475,0
500,0
b
Seat tube angle
77,0º
77,0º
77,0º
77,0º
77,0º
c
Top tube length
566,0
591,0
616,0
641,0
666,0
d
Head tube length
95,0
105,0
115,0
130,0
140,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
66,0º
f
Rake
44,0
44,0
44,0
44,0
44,0
g
Trail
119,0
119,0
119,0
119,0
119,0
h
Wheelbase
1158,0
1183,0
1209,0
1240,0
1265,0
i
Chainstay length
432,0
432,0
432,0
437,0
437,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
40,0
k
Stack height
603,0
612,0
621,0
635,0
644,0
l
Reach
429,0
450,0
472,0
492,0
513,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
334,0
334,0
334,0
334,0
334,0
y
Front center
729,0
754,0
780,0
806,0
831,0
