Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,8 kg
Front travel
150mm
Rear travel
150mm

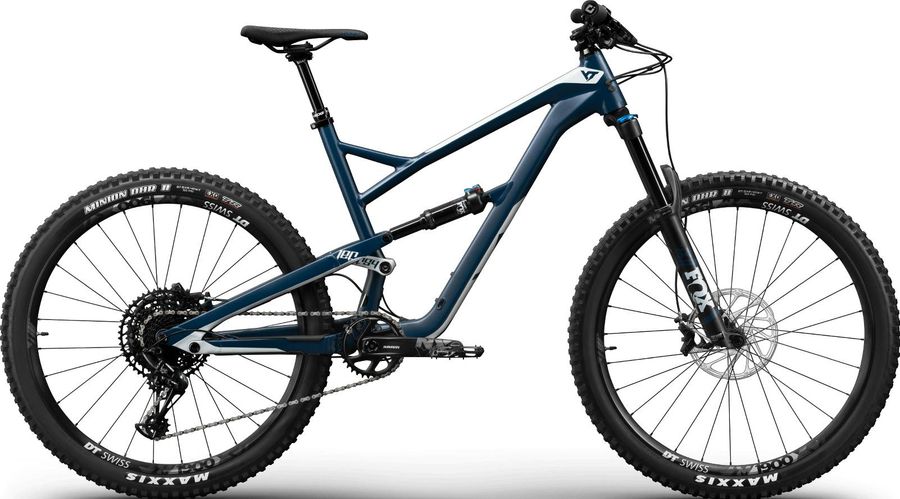

About the YT JEFFSY 27 AL Base 2019
The YT JEFFSY 27 AL Base 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,8 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
ODI Elite Motion V2.1 | Lock On
|
|---|---|
|
Pedals
|
included / inklusive The included pedals were not made for demanding trails or racing. That is why we also offer you quality pedals at an attractive price in the shopping cart.
|
|
Steam
|
Race Face AEFFECT R 35 50mm
|
|---|---|
|
Saddle
|
SDG FLY MTN YT Custom | White | Grey
|
|
Headset
|
Acros AZX-203 High Cap
|
|
Seatpost
|
SDG Tellis 31.6mm | S 125mm Drop | M - XXL 150mm Drop
|
|
Handlebar
|
Race Face AEFFECT R 35 20mm Rise | 780mm
|
|
Brake lever
|
SRAM Guide T
|
|
Brakes
|
SRAM Guide T
Hydraulic
|
|
|
|
|
Crankset
|
SRAM NX Eagle 175mm | 34T | DUB
|
|---|---|
|
Shifter
|
SRAM NX Eagle 12-Speed
|
|
Chain guide
|
None included
|
|
Bottom bracket
|
SRAM DUB Pressfit
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
JEFFSY ALLOY 27,5" hydro-formed aluminum frame, V4L Virtual 4-Link rear suspension, 148x12mm DT Swiss QR Thru axle, seat stay/chain stay protection
|
|---|---|
|
Rear suspension
|
Fox Float DPS Performance EVOL
|
|
Front suspension
|
Fox 34 Float Rhythm
|
|
Rims
|
DT Swiss M 1900 SPLINE 27,5“ x 30mm | 110x15mm | 148x12mm
|
|---|---|
|
Tires
|
Maxxis Minion DHR II 27,5" | 2.40
|
|
Spokes
|
DT Swiss M 1900 Spline wheelset
|
|
Rear hub
|
DT Swiss M 1900 Spline wheelset, 15mm x 110mm front, 12mm x 148mm rear
|
|
Front hub
|
DT Swiss M 1900 Spline wheelset, 15mm x 110mm front, 12mm x 148mm rear
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
450,0
|
480,0
|
520,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
566,0
|
595,0
|
618,0
|
641,0
|
|
d
Head tube length
|
95,0
|
110,0
|
125,0
|
135,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
66,5º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
109,0
|
109,0
|
109,0
|
109,0
|
|
h
Wheelbase
|
1131,0
|
1162,0
|
1193,0
|
1217,0
|
|
i
Chainstay length
|
423,0
|
423,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
15,0
|
15,0
|
15,0
|
15,0
|
|
k
Stack height
|
577,0
|
590,0
|
604,0
|
613,0
|
|
l
Reach
|
408,0
|
433,0
|
453,0
|
473,0
|
|
m
Standover height
|
701,0
|
730,0
|
745,0
|
775,0
|
|
x
Bottom bracket height
|
341,0
|
341,0
|
341,0
|
341,0
|
|
y
Front center
|
708,0
|
739,0
|
765,0
|
789,0
|
