BikeWise

YT Jeffsy 27 AL Comp 2018

MTB Enduro
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,24 kg
Front travel
150mm
Rear travel
150mm

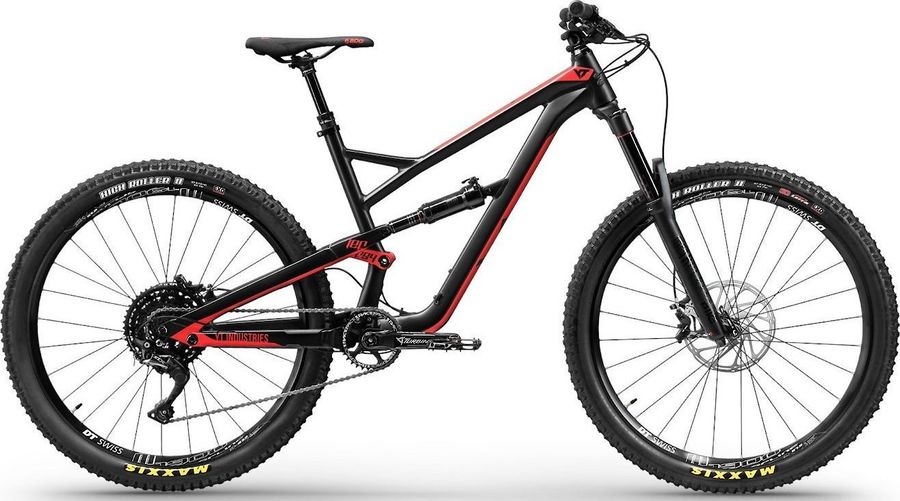

YT Jeffsy 27 AL Comp 2018

About the YT Jeffsy 27 AL Comp 2018

The YT Jeffsy 27 AL Comp 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,24 kg.

Features

The YT Jeffsy 27 AL Comp 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater
Pedals
None included
Components
Steam
Race Face Turbine R, 50mm length
Saddle
SDG Fly MTN, red, YT custom
Headset
Acros AZX-203
Seatpost
e*thirteen TRS+, 125mm or 150mm drop
Handlebar
Race Face Turbine R 35, 35mm rise, 780mm width
Brake lever
SRAM Guide RS
Brakes
SRAM Guide RS Hydraulic 384 g
Application
MTB
Blade material
Aluminum - Forged, Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RS-B1
Name
Guide RS
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
384
Drivetrain
Crankset
Race Face Turbine, 175mm, Boost
Shifter
Shimano SLX, 11-speed
Bottom bracket
Race Face BB92
Cassette
E*thirteen TRS+
Rear derailleur
Shimano SLX RD-M7000-11-SGS
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Frameset
Frame
Aluminum
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
DT Swiss M 1900 Spline, 30mm width
Tires
Front: Maxxis High Roller II, 2.40" 3C MaxxTerra EXO, Rear: Maxxis High Roller II, 2.40" MaxxPro EXO
Rear hub
DT Swiss M 1900 Spline, Front: 15mm x 110mm, Rear: 12mm x 148mm
Front hub
DT Swiss M 1900 Spline, Front: 15mm x 110mm, Rear: 12mm x 148mm

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
410,0
410,0
450,0
450,0
480,0
480,0
520,0
520,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
75,0º
75,0º
75,0º
75,0º
c
Top tube length
566,0
566,0
595,0
595,0
618,0
618,0
641,0
641,0
d
Head tube length
95,0
95,0
110,0
110,0
125,0
125,0
135,0
135,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
42,0
42,0
42,0
42,0
42,0
42,0
42,0
42,0
g
Trail
109,0
109,0
109,0
109,0
109,0
109,0
109,0
109,0
h
Wheelbase
1131,0
1131,0
1162,0
1162,0
1193,0
1193,0
1217,0
1217,0
i
Chainstay length
423,0
423,0
423,0
423,0
428,0
428,0
428,0
428,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
15,0
15,0
15,0
15,0
k
Stack height
577,0
577,0
590,0
590,0
604,0
604,0
613,0
613,0
l
Reach
408,0
408,0
433,0
433,0
453,0
453,0
473,0
473,0
m
Standover height
701,0
701,0
730,0
730,0
745,0
745,0
775,0
775,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
340,0
340,0
340,0
340,0
y
Front center
708,0
708,0
739,0
739,0
765,0
765,0
789,0
789,0
