YT Jeffsy 27 CF 2018

MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,76 kg
Front travel
150mm
Rear travel
150mm

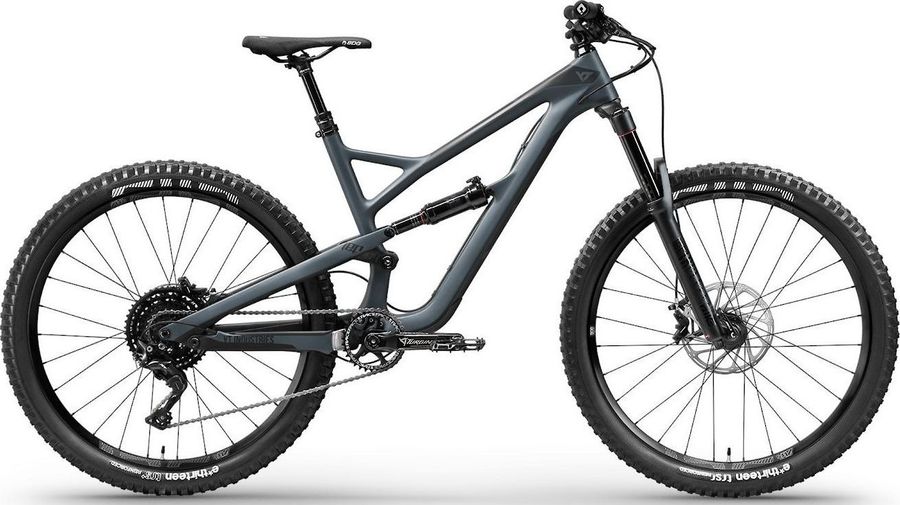

YT Jeffsy 27 CF 2018

About the YT Jeffsy 27 CF 2018

The YT Jeffsy 27 CF 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,76 kg.

Features

The YT Jeffsy 27 CF 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
ODI Elite Motion V2.1 Lock-on
Pedals
None included
Components
Steam
Race Face Turbine R, 50mm length
Saddle
SDG Fly MTN, red, YT custom
Headset
Acros AIX-326
Seatpost
e*thirteen TRS+, 125mm or 150mm drop
Handlebar
Race Face Turbine R 35, 35mm rise, 780mm width
Brake lever
SRAM Guide RS
Brakes
SRAM Guide RS Hydraulic 384 g
Application
MTB
Blade material
Aluminum - Forged, Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RS-B1
Name
Guide RS
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
384
Drivetrain
Crankset
Race Face Turbine, 175mm length, Boost
Shifter
Shimano XT, 11-speed
Bottom bracket
Race Face BB92
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
E*thirteen TRS+
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Frameset
Frame
Carbon Fiber
Rear suspension
RockShox Deluxe RT3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L3, L4, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-RT3-B1
Name
Deluxe RT3
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Wheels
Rims
e*thirteen TRS, 28 hole, 30mm width
Tires
Front: e*thirteen TRSR, 2.35", Rear: e*thirteen TRS+, 2.35"
Rear hub
e*thirteen TRS, Front: 15mm x 110mm, Rear: 12mm x 148mm
Front hub
e*thirteen TRS, Front: 15mm x 110mm, Rear: 12mm x 148mm

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
410,0
410,0
450,0
450,0
480,0
480,0
520,0
520,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
75,0º
75,0º
75,0º
75,0º
c
Top tube length
566,0
566,0
595,0
595,0
618,0
618,0
641,0
641,0
d
Head tube length
95,0
95,0
110,0
110,0
125,0
125,0
135,0
135,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
42,0
42,0
42,0
42,0
42,0
42,0
42,0
42,0
g
Trail
109,0
109,0
109,0
109,0
109,0
109,0
109,0
109,0
h
Wheelbase
1131,0
1131,0
1162,0
1162,0
1193,0
1193,0
1217,0
1217,0
i
Chainstay length
423,0
423,0
423,0
423,0
428,0
428,0
428,0
428,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
15,0
15,0
15,0
15,0
k
Stack height
577,0
577,0
590,0
590,0
604,0
604,0
613,0
613,0
l
Reach
408,0
408,0
433,0
433,0
453,0
453,0
473,0
473,0
m
Standover height
701,0
701,0
730,0
730,0
745,0
745,0
775,0
775,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
340,0
340,0
340,0
340,0
y
Front center
708,0
708,0
739,0
739,0
765,0
765,0
789,0
789,0
