YT JEFFSY 27 CF Comp 2019

MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,3 kg
Front travel
150mm
Rear travel
150mm

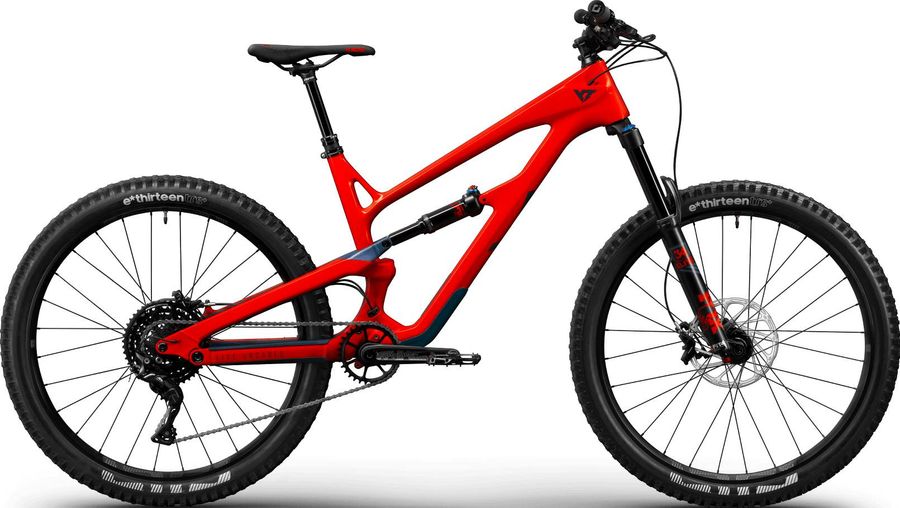

YT JEFFSY 27 CF Comp 2019

About the YT JEFFSY 27 CF Comp 2019

The YT JEFFSY 27 CF Comp 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,3 kg.

Features

The YT JEFFSY 27 CF Comp 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
ODI Elite Motion V2.1 | Lock On
Pedals
included / inklusive The included pedals were not made for demanding trails or racing. That is why we also offer you quality pedals at an attractive price in the shopping cart.
Components
Steam
Renthal Apex 35 50mm
Saddle
SDG FLY MTN Cutout YT Custom | Orange | Grey
Headset
Acros AZX-203 High Cap
Seatpost
e*thirteen TRS Plus 31.6mm | S 125mm Drop | M - XL 150mm Drop | XXL 170mm Drop
Handlebar
Renthal Fatbar 35 30mm Rise | 800mm
Brake lever
SRAM Guide R
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
e*thirteen TRS 175mm | 32T BOOST
Shifter
Shimano XT 11-Speed
Chain guide
None included
Bottom bracket
e*thirteen BB92 24mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
E*thirteen TRS+
Frameset
Frame
JEFFSY Carbon 27" high modular carbonfiber main frame with aluminium rear triangle | V4L Virtual 4-Link rear suspension | 148x12mm DT Swiss QR Thru axle | down tube/seat stay/chain stay protection
Rear suspension
Fox Float DPS Performance EVOL
Front suspension
Fox 34 Float Performance Elite
Wheels
Rims
e*thirteen TRS 27,5“ x 27mm | 110x15 mm | 148x12mm
Tires
e*thirteen TRS Plus 27,5" | 2.35
Spokes
e*thirteen TRS wheelset
Rear hub
e*thirteen TRS wheelset, 15mm x 110mm front, 12mm x 148mm rear
Front hub
e*thirteen TRS wheelset, 15mm x 110mm front, 12mm x 148mm rear

Geometry

Size SM MD LG XL XXL
a
Seat tube length
395,0
415,0
435,0
460,0
485,0
b
Seat tube angle
76,5º
76,5º
76,5º
76,5º
76,5º
c
Top tube length
561,0
584,0
607,0
630,0
653,0
d
Head tube length
110,0
120,0
130,0
140,0
150,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
66,0º
f
Rake
45,0
45,0
45,0
45,0
45,0
g
Trail
109,0
109,0
109,0
109,0
109,0
h
Wheelbase
1159,0
1183,0
1207,0
1236,0
1260,0
i
Chainstay length
427,0
427,0
427,0
432,0
432,0
j
Bottom bracket drop
16,0
16,0
16,0
16,0
16,0
k
Stack height
591,0
600,0
609,0
618,0
627,0
l
Reach
420,0
440,0
460,0
480,0
500,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
342,0
342,0
342,0
342,0
342,0
y
Front center
732,0
756,0
780,0
804,0
828,0
