YT JEFFSY 27 CF Pro 2019

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,9 kg
Front travel
150mm
Rear travel
150mm

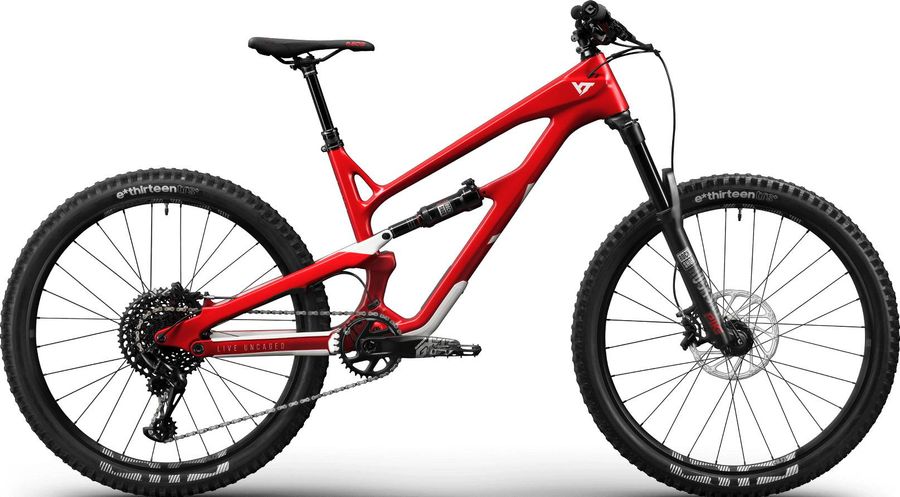

YT JEFFSY 27 CF Pro 2019

About the YT JEFFSY 27 CF Pro 2019

The YT JEFFSY 27 CF Pro 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,9 kg.

Features

The YT JEFFSY 27 CF Pro 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
ODI Elite Motion V2.1 | Lock On
Pedals
included / inklusive The included pedals were not made for demanding trails or racing. That is why we also offer you quality pedals at an attractive price in the shopping cart.
Components
Steam
Race Face Turbine R 35 50mm
Saddle
SDG FLY MTN Cutout YT Custom | Red | White
Headset
Acros AZX-203 High Cap
Seatpost
e*thirteen TRS Plus 31.6mm | S 125mm Drop | M - XL 150mm Drop | XXL 170mm Drop
Handlebar
Race Face Turbine R 35 35mm Rise | 800mm
Brake lever
SRAM Guide RS
Brakes
SRAM Guide RS Hydraulic 384 g
Application
MTB
Blade material
Aluminum - Forged, Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RS-B1
Name
Guide RS
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
384
Drivetrain
Crankset
SRAM GX Eagle 175mm | 34T | DUB
Shifter
SRAM GX Eagle 12-Speed
Chain guide
None included
Bottom bracket
SRAM DUB Pressfit
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
JEFFSY CARBON 27,5" high modular carbonfiber frame, V4L Virtual 4-Link rear suspension, 148x12mm DT Swiss QR Thru axle, down tube/seat stay/chain stay protection
Rear suspension
RockShox Deluxe RT3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L3, L4, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-RT3-B1
Name
Deluxe RT3
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Wheels
Rims
e*thirteen TRS Plus 27,5“ x 28mm | 110x15mm | 148x12mm
Tires
e*thirteen TRS Plus 27,5" | 2.35
Spokes
e*thirteen TRS Plus wheelset
Rear hub
e*thirteen TRS Plus wheelset, 15mm x 110mm front, 12mm x 148mm rear
Front hub
e*thirteen TRS Plus wheelset, 15mm x 110mm front, 12mm x 148mm rear

Geometry

Size SM MD LG XL XXL
a
Seat tube length
395,0
415,0
435,0
460,0
485,0
b
Seat tube angle
76,5º
76,5º
76,5º
76,5º
76,5º
c
Top tube length
561,0
584,0
607,0
630,0
653,0
d
Head tube length
110,0
120,0
130,0
140,0
150,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
66,0º
f
Rake
45,0
45,0
45,0
45,0
45,0
g
Trail
109,0
109,0
109,0
109,0
109,0
h
Wheelbase
1159,0
1183,0
1207,0
1236,0
1260,0
i
Chainstay length
427,0
427,0
427,0
432,0
432,0
j
Bottom bracket drop
16,0
16,0
16,0
16,0
16,0
k
Stack height
591,0
600,0
609,0
618,0
627,0
l
Reach
420,0
440,0
460,0
480,0
500,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
342,0
342,0
342,0
342,0
342,0
y
Front center
732,0
756,0
780,0
804,0
828,0
