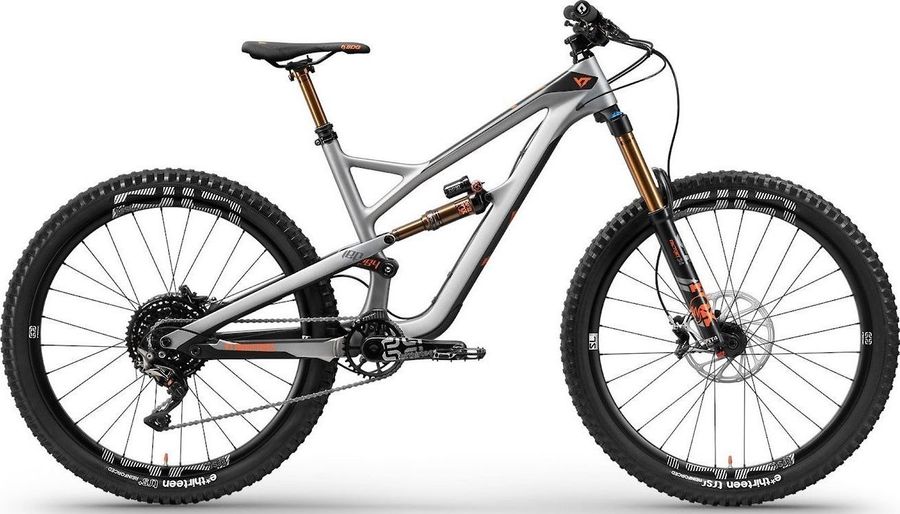

YT Jeffsy 27 CF Pro Race 2018

MTB Enduro
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,33 kg
Front travel
160mm
Rear travel
160mm
YT Jeffsy 27 CF Pro Race 2018

About the YT Jeffsy 27 CF Pro Race 2018

The YT Jeffsy 27 CF Pro Race 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,33 kg.

Features

The YT Jeffsy 27 CF Pro Race 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
ODI Elite Motion V2.1 Lock-on
Pedals
None included
Components
Steam
Renthal Apex 35, 50mm length
Saddle
SDG Fly MTN, orange, YT custom
Headset
Acros AIX-326
Seatpost
FOX Transfer Factory, 125mm or 150mm drop
Handlebar
Renthal Fatbar Carbon 35, gold, 30mm rise, 800mm width
Brake lever
SwingLink carbon
Brakes
SRAM Guide Ultimate Hydraulic 360 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Arctic Grey Anodized, Black Anodized
Model
DB-GDE-ULT-A1
Name
Guide Ultimate
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
360
Drivetrain
Crankset
e*thirteen TRS Race SL Carbon, 175mm length, Boost
Shifter
Shimano XTR, 11-speed
Chain guide
e*thirteen TRS Race SL, I05 2 bolt mount
Bottom bracket
e*thirteen BB92
Cassette
E*thirteen TRS+
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano XTR RD-M9000-SGS 224 g SGS 11s
Average weight (g)
224
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Anodized
Bracket material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Cable fixing bolt finish
Black
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M9000-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
Carbon Fiber
Front suspension
Fox 34 Float Factory
Rear suspension
Fox Float DPX2 Factory
Wheels
Rims
e*thirteen TRS Race SL Carbon, 28 hole, 28mm width
Tires
Front: e*thirteen TRSR, 2.35", Rear: e*thirteen TRS+, 2.35"
Rear hub
e*thirteen TRS Race SL Carbon, Front: 15mm x 110mm, Rear: 12mm x 148mm
Front hub
e*thirteen TRS Race SL Carbon, Front: 15mm x 110mm, Rear: 12mm x 148mm

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
410,0
410,0
450,0
450,0
480,0
480,0
520,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
74,5º
74,5º
74,5º
74,5º
c
Top tube length
566,0
566,0
595,0
595,0
618,0
618,0
641,0
641,0
d
Head tube length
95,0
95,0
110,0
110,0
125,0
125,0
135,0
135,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
66,0º
66,0º
66,0º
66,0º
f
Rake
42,0
42,0
42,0
42,0
42,0
42,0
42,0
42,0
g
Trail
112,0
112,0
112,0
112,0
112,0
112,0
112,0
112,0
h
Wheelbase
1135,0
1135,0
1166,0
1166,0
1197,0
1197,0
1221,0
1221,0
i
Chainstay length
423,0
423,0
423,0
423,0
428,0
428,0
428,0
428,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
12,0
12,0
12,0
12,0
k
Stack height
580,0
580,0
594,0
594,0
607,0
607,0
616,0
616,0
l
Reach
403,0
403,0
428,0
428,0
448,0
448,0
468,0
468,0
m
Standover height
-
-
-
-
-
-
-
-
x
Bottom bracket height
343,0
343,0
343,0
343,0
343,0
343,0
343,0
343,0
y
Front center
712,0
712,0
743,0
743,0
769,0
769,0
793,0
793,0
