BikeWise

YT Jeffsy 29 AL 2018

MTB Trail
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
13,18 kg
Front travel
140mm
Rear travel
140mm

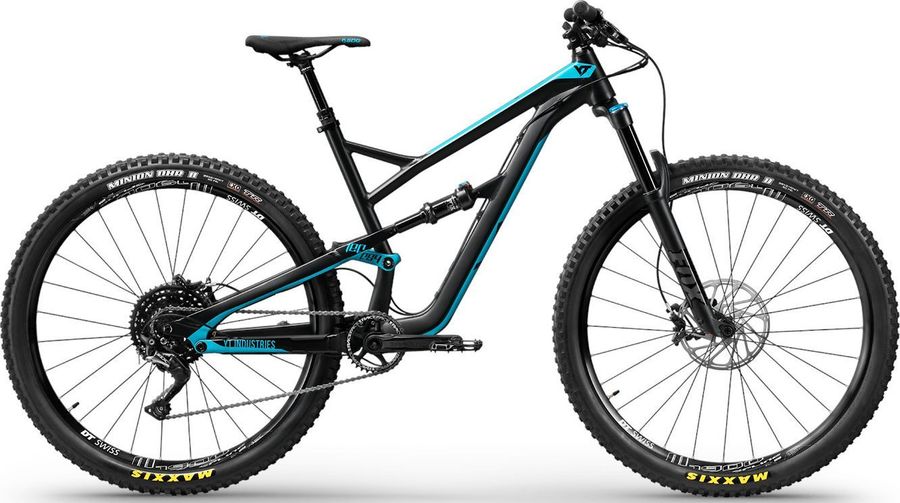

YT Jeffsy 29 AL 2018

About the YT Jeffsy 29 AL 2018

The YT Jeffsy 29 AL 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,18 kg.

Features

The YT Jeffsy 29 AL 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater
Pedals
None included
Components
Steam
Race Face Aeffect R, 50mm length
Saddle
SDG Fly MTN, teal blue, YT custom
Headset
Acros AZX-203
Seatpost
e*thirteen TRS+, 125mm or 150mm drop
Handlebar
Race Face Aeffect R 35, 20mm rise, 780mm width
Brake lever
SRAM Guide R
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
Race Face Aeffect SL, 175mm length, Boost
Shifter
Shimano SLX, 11-speed
Bottom bracket
Race Face BB92
Cassette
E*thirteen TRS+
Rear derailleur
Shimano SLX RD-M7000-11-SGS
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Frameset
Frame
Aluminum
Front suspension
Fox 34 Float Rhythm
Rear suspension
Fox Float DPS Performance
Wheels
Rims
DT Swiss M 1900 Spline, 30mm width
Tires
Maxxis Minion DHR II, 2.40" WT EXO
Rear hub
DT Swiss M 1900 Spline, Front: 15mm x 110mm, Rear: 12mm x 148mm
Front hub
DT Swiss M 1900 Spline, Front: 15mm x 110mm, Rear: 12mm x 148mm

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
400,0
400,0
440,0
440,0
480,0
480,0
520,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
74,5º
74,5º
74,5º
74,5º
c
Top tube length
571,0
571,0
592,0
592,0
616,0
616,0
637,0
637,0
d
Head tube length
90,0
90,0
95,0
95,0
110,0
110,0
115,0
115,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
67,0º
67,0º
67,0º
67,0º
f
Rake
42,0
42,0
42,0
42,0
36,0
36,0
41,0
41,0
g
Trail
113,0
113,0
113,0
113,0
120,0
120,0
114,0
114,0
h
Wheelbase
1132,0
1132,0
1154,0
1154,0
1178,0
1178,0
1205,0
1205,0
i
Chainstay length
435,0
435,0
435,0
435,0
440,0
440,0
440,0
440,0
j
Bottom bracket drop
24,0
24,0
24,0
24,0
24,0
24,0
24,0
24,0
k
Stack height
605,0
605,0
610,0
610,0
623,0
623,0
628,0
628,0
l
Reach
405,0
405,0
425,0
425,0
445,0
445,0
465,0
465,0
m
Standover height
-
-
-
-
-
-
-
-
x
Bottom bracket height
350,0
350,0
350,0
350,0
350,0
350,0
350,0
350,0
y
Front center
698,0
698,0
720,0
720,0
739,0
739,0
766,0
766,0
