YT JEFFSY 29 CF Comp 2019

MTB Trail

Groupset

Shimano XT

Frame material

Carbon

Wheel size

29"

Suspension type

Full suspension

Weight

13,4 kg

Front travel

140mm

Rear travel

140mm

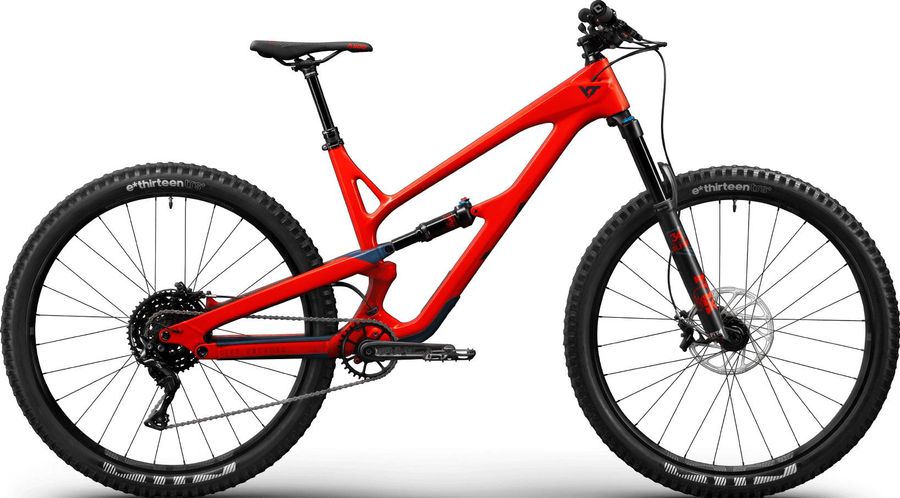

About the YT JEFFSY 29 CF Comp 2019

The YT JEFFSY 29 CF Comp 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,4 kg.

Features

The YT JEFFSY 29 CF Comp 2019 has 5 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

E-THRU AXLE More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	ODI Elite Motion V2.1 \| Lock On
Pedals	included / inklusive The included pedals were not made for demanding trails or racing. That is why we also offer you quality pedals at an attractive price in the shopping cart.

Components
Steam	Renthal Apex 35 35 mm Clamp \| 40mm
Saddle	SDG FLY MTN Cutout YT Custom \| Orange \| Grey
Headset	Acros AZX-203 High Cap
Seatpost	e*thirteen TRS Plus 31.6mm \| S 125mm Drop \| M - XL 150mm Drop \| XXL 170mm Drop
Handlebar	Renthal Fatbar 35 30mm Rise \| 800mm
Brake lever	SRAM Guide R
Brakes	SRAM Guide R Hydraulic 392 g
Application MTB Blade material Aluminum - Stamped Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Gloss Black Model DB-GDE-R-B1 Name Guide R Orientation Front, Rear Pad type disc Steel-backed metal sintered, Steel-backed organic Weight based on Direct Mount, 800mm hose, 160mm CL Rotor Weight 392

Drivetrain
Crankset	e*thirteen TRS 175mm \| 32T BOOST
Shifter	Shimano Deore XT 11-Speed
Chain guide	None included
Bottom bracket	e*thirteen BB92 24mm
Rear derailleur	Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g) 271 B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Aluminum Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 11-speed Lower pulley max 42T(2x11-speed), 46T(1x11-speed) Lower pulley min 40T Model RD-M8000-GS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T pulley.tension_pulley_bearing Sealed bearing Pulley cage GS Speeds 11 Upper pulley max 11T Upper pulley min 11T Total capacity 39T
Cassette	E*thirteen TRS+
Chain	Shimano CN-HG601 257 g
Average weight (g) 257 Chromizing treatment roller link pin Model CN-HG601-11 Pin link plate Gray Roller link plate SIL-TEC Type HG-X11

Frameset
Frame	JEFFSY Carbon 29" high modular carbonfiber main frame with aluminium rear triangle \| V4L Virtual 4-Link rear suspension \| 148x12mm DT Swiss QR Thru axle \| down tube/seat stay/chain stay protection
Rear suspension	Fox Float DPS Performance Elite
Front suspension	Fox 34 Float Performance Elite

Wheels
Rims	e*thirteen TRS 29“ x 27mm \| 110x15mm \| 148x12mm
Tires	e*thirteen TRS Plus 29" \| 2.35
Spokes	e*thirteen TRS wheelset
Rear hub	e*thirteen TRS wheelset, 15mm x 110mm front, 12mm x 148mm rear
Front hub	e*thirteen TRS wheelset, 15mm x 110mm front, 12mm x 148mm rear

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XT 1 × 11

Crank: 32T

Cassette: 9-46T

Speeds: 11s

Gearing

Average

0,7

Average

3,56

Compared to similar bikes, the YT JEFFSY 29 CF Comp 2019 has a good uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	SM	MD	LG	XL	XXL
a Seat tube length	400,0	415,0	435,0	460,0	485,0
b Seat tube angle	77,5º	77,5º	77,5º	77,5º	77,5º
c Top tube length	571,0	592,0	614,0	637,0	659,0
d Head tube length	100,0	105,0	110,0	120,0	125,0
e Head tube angle	66,5º	66,5º	66,5º	66,5º	66,5º
f Rake	47,0	47,0	47,0	47,0	47,0
g Trail	112,0	112,0	112,0	112,0	112,0
h Wheelbase	1171,0	1193,0	1215,0	1244,0	1266,0
i Chainstay length	435,0	435,0	435,0	440,0	440,0
j Bottom bracket drop	35,0	35,0	35,0	35,0	35,0
k Stack height	615,0	620,0	624,0	633,0	638,0
l Reach	434,0	454,0	474,0	494,0	514,0
m Standover height	-	-	-	-	-
x Bottom bracket height	341,0	341,0	341,0	341,0	341,0
y Front center	738,0	760,0	782,0	806,0	828,0
