YT Jeffsy CORE 3 29 2021

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
14,4 kg
Front travel
150mm
Rear travel
150mm

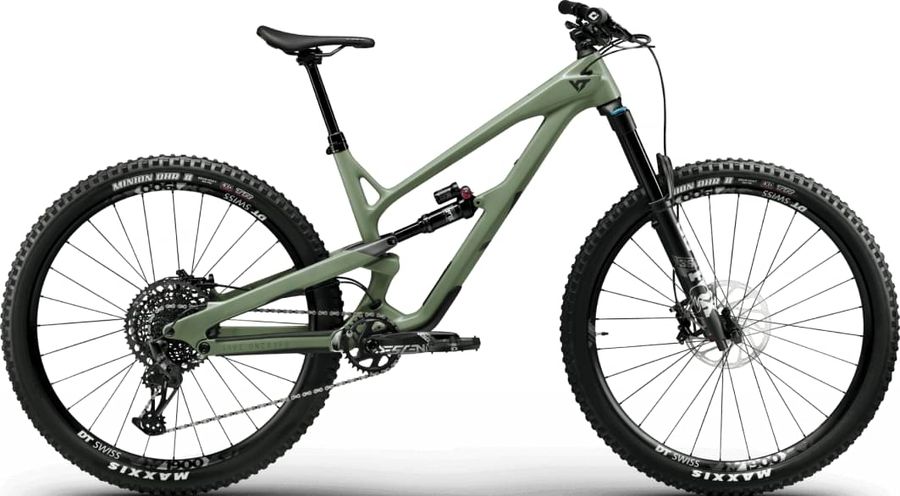

YT Jeffsy CORE 3 29 2021

About the YT Jeffsy CORE 3 29 2021

The YT Jeffsy CORE 3 29 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,4 kg.

Features

The YT Jeffsy CORE 3 29 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ODI ELITE MOTION V2.1, Lock-On
Components
Steam
E13 Plus 35, 50 mm | 0°Rise | 7050AL | Black
Saddle
SDG BEL AIR 3.0, 140 mm I Lux-Alloy Rail I YT Custom Design
Headset
ACROS AZX-576, ZS44 ZS56 | High Cap | 2 Spacer 5 mm
Seatpost
YT POSTMAN MMX Remote, Ø 31.6mm | 125 mm (S-M) |150 mm (L) | 170 mm (XL-XXL)
Handlebar
E13 Plus 35, 780 mm | 35 mm Rise | 9° Back | 5° Up | 7050AL | Black
Brakes
SRAM G2 R Hydraulic 393 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-G2-R-A1
Name
G2 R
Orientation
Front, Rear
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
393
Drivetrain
Crankset
SRAM Descendant 7k, Crank Arm Length 175 mm | 32T I DUB-PressFit
Shifter
SRAM GX EAGLE, 12-speed
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon
Rear suspension
Fox Float DPX2 Performance
Front suspension
Fox 36 Float Performance Elite
Wheels
Rims
DT SWISS M 1900 SPLINE, Aluminum Rims 29“ | Inner Width 30 mm | Front Hub 110 x 15 mm | Rear Hub 148 x 12 mm I XD I 3 Pawl
Tires
MAXXIS MINION DHR II, Tire Size 29“ x 2.4 | EXO Casing | Tubeless Ready | Dual Compound

Geometry

Size SM MD LG XL XXL
a
Seat tube length
400,0
415,0
435,0
460,0
485,0
b
Seat tube angle
77,0º
77,0º
77,0º
77,0º
77,0º
c
Top tube length
572,0
593,0
615,0
638,0
660,0
d
Head tube length
100,0
105,0
110,0
120,0
125,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
66,0º
f
Rake
45,0
45,0
45,0
45,0
45,0
g
Trail
117,0
117,0
117,0
117,0
117,0
h
Wheelbase
1174,0
1196,0
1218,0
1247,0
1269,0
i
Chainstay length
435,0
435,0
435,0
440,0
440,0
j
Bottom bracket drop
32,0
32,0
32,0
32,0
32,0
k
Stack height
618,0
622,0
627,0
636,0
640,0
l
Reach
430,0
450,0
470,0
490,0
510,0
m
Standover height
706,0
702,0
701,0
693,0
694,0
x
Bottom bracket height
344,0
344,0
344,0
344,0
344,0
y
Front center
741,0
763,0
785,0
809,0
831,0
